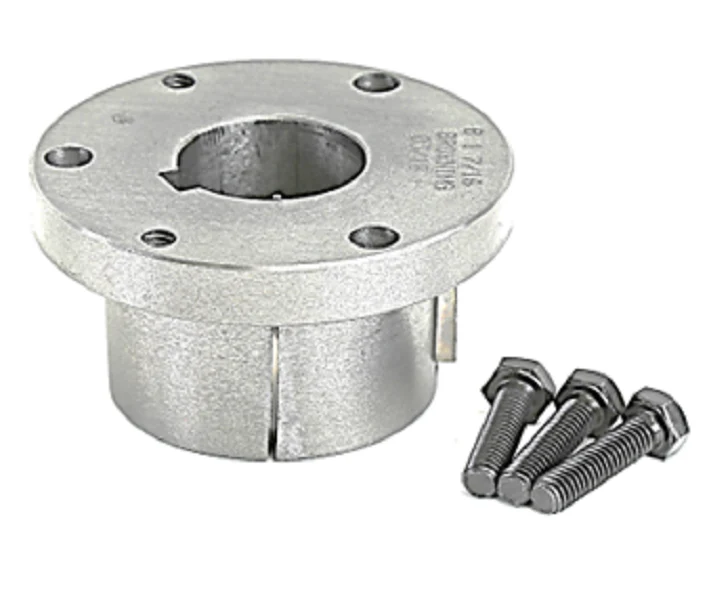

Browning B 1 7/16 Bushing
The Browning B 1 7/16 Bushing is a high-performance B Series split taper bushing designed for demanding power transmission applications in HVACR and industrial drive systems. Engineered from sintered steel or ductile iron, this component features a 1 7/16-inch bore with a precision-machined 3/8" x 3/16" keyseat to ensure a high-torque, non-slip connection. The split taper design incorporates a double-split barrel and a solid flange, providing superior concentricity and clamping force compared to standard straight-bore pulleys. This "key-to-key" drive system utilizes keys on both the shaft and the bushing barrel, maximizing mechanical locking security. With a 3/4" per foot taper and a three-bolt circle pattern using 5/16-18 x 1 1/4 cap screws, it facilitates rapid mechanical alignment and easy removal without shaft damage. Rated for a wrench torque of 192 in-lbs, this QD style bushing is compatible with various sheaves and sprockets, ensuring reliable belt drive assembly performance.
Key Benefits for Technicians:- Double-Split Barrel: Enhances concentricity to minimize shaft vibration and extend bearing life.
- Key-to-Key Drive: Provides the strongest positive drive by utilizing redundant keys on both components.
- Solid Flange Construction: Simplifies installation and maintains structural integrity under high-torque loads.
- Self-Locking Taper: The 3/4" per foot taper ensures a secure mechanical bond between the bushing and the hub.
What is the maximum torque rating for this bushing?
The recommended installation torque is 192 in-lbs using the provided 5/16-18 cap screws to ensure optimal clamping power.
Is the key included with the bushing?
Yes, this B Series bushing typically includes the required cap screws and the external key for the 3/8" x 3/16" keyseat.
Can I use this on a shaft smaller than 1-7/16"?
No, this bushing is specifically machined for a 1-7/16 inch shaft diameter. Using it on an undersized shaft will prevent proper clamping and lead to component failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $36.13
-65%$36.13
$12.65Browning B 1 7/16 Bushing
