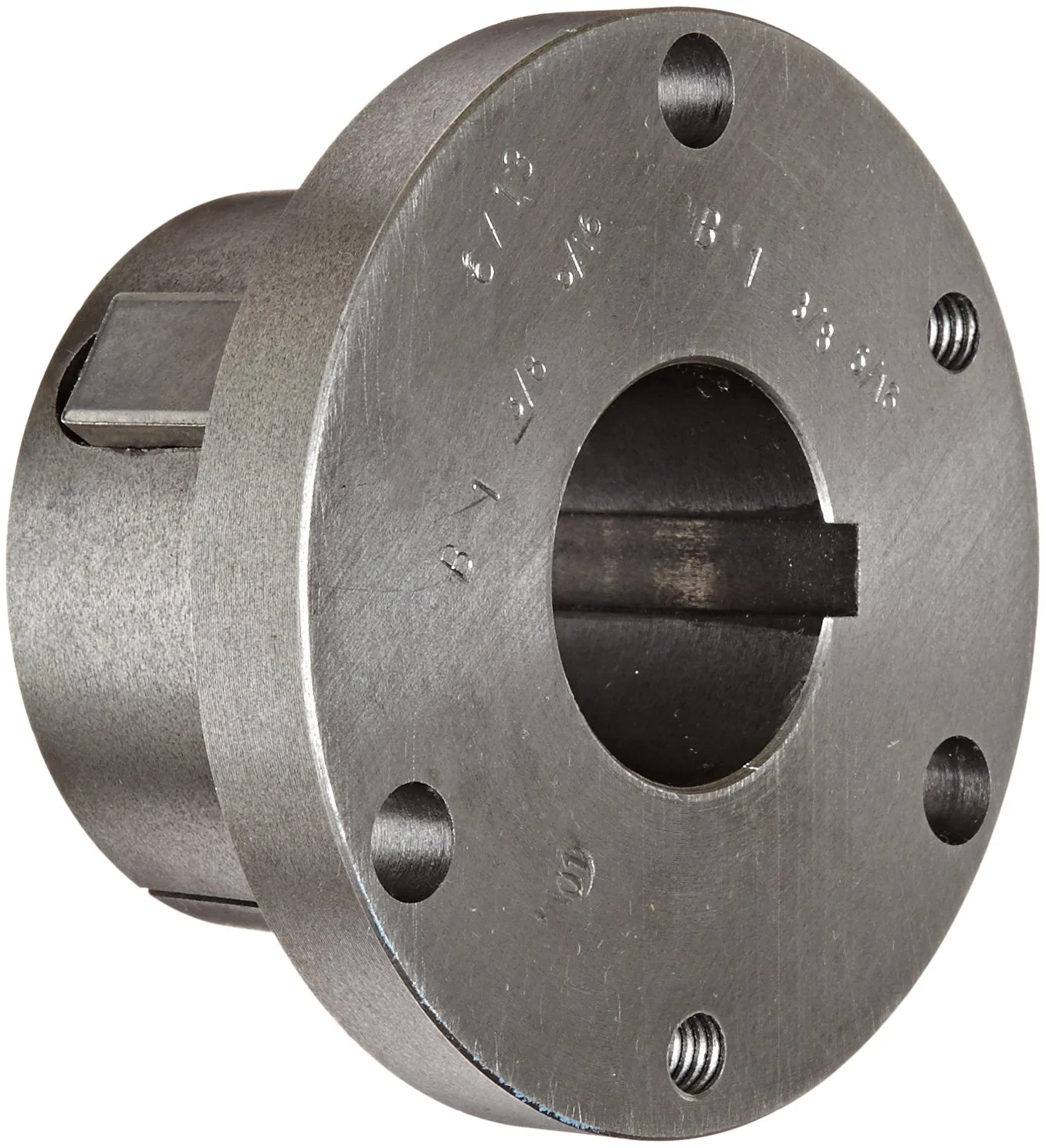

Browning B 1 3/8 5/16 Bushing
For industrial power transmission and HVACR fan/blower assemblies, the Browning B 1 3/8 5/16 serves as a high-precision B Series Split Taper Bushing designed for rigorous heavy-duty applications. This component features a 1 3/8" bore and is specifically machined for a 5/16" x 5/32" keyseat, ensuring a secure "Key to Key" drive where both the shaft and the hub are keyed for maximum torque transfer. The double-split barrel design provides superior concentricity by facilitating a uniform 360-degree clamp fit around the shaft, which significantly reduces mechanical vibration and prevents shaft galling common in high-RPM service. Built from robust sintered steel or ductile iron, the Browning Split Taper Bushing utilizes a 3/4" per foot self-locking taper to maintain a reliable connection in centrifugal fans, pumps, and conveyor systems. Its solid flange design ensures the bore remains stable under high radial loads, making it a critical choice for contractors requiring dependable interchangeable bushings in the field.
Key Benefits:
- High Torque Transmission: The "Key to Key" drive system utilizes keys on both the shaft and the product to eliminate reliance on cap screw friction alone.
- Reduced Vibration: The double-split barrel ensures true concentricity, protecting bearings and sensitive motor components from unnecessary wear.
- Standardized Compatibility: Fully interchangeable with B-series sheaves, sprockets, and pulleys used across the HVACR industry.
- Simplified Installation: The 3/4" taper per foot is self-locking and facilitates easier removal compared to standard straight-bore hubs.
Common Questions:
What is the maximum torque capacity for this B-series bushing?
This bushing is typically rated for a wrench torque of 192 in-lbs on the cap screws to ensure a proper clamp fit without overstressing the cast material.
Does this bushing require lubrication during assembly?
No. It is critical to keep the shaft, bushing barrel, and hub bore free of lubricants, paint, and burrs to prevent component breakage or slippage during operation.
Can I use this on a shaft without a keyway?
For the Browning B 1 3/8 5/16, a 5/16" x 5/32" keyway on the shaft is required to maintain the specified torque ratings and mechanical engagement.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
