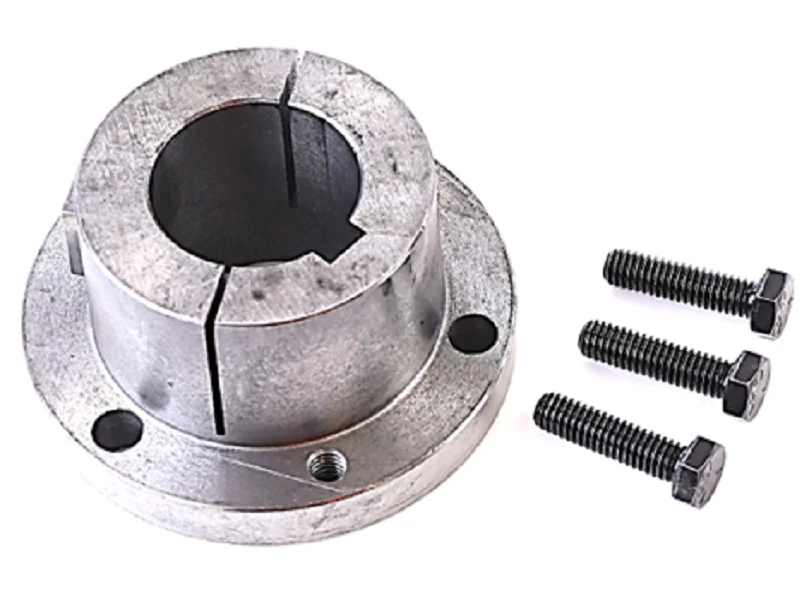

Browning B 1 1/2 Bushing
The Browning B 1 1/2 Split Taper Bushing is a high-performance power transmission component engineered for rigorous HVACR and industrial drive applications. Featuring a 1 1/2 inch bore with a standard 3/8 x 3/16 keyseat, this B Series bushing utilizes a double-split barrel design to ensure maximum concentricity and a secure, positive clamp fit. The 3/4" per foot taper provides a reliable self-locking mechanism that maintains shaft alignment even under high-torque conditions. Built with a solid flange, it prevents bore distortion during heavy-duty operation. This tapered bushing is fully compatible with B-series sheaves, pulleys, and sprockets, offering a versatile solution for contractors looking to minimize system vibration and extend the life of mechanical drives. Installation requires three 5/16 x 1 1/4 cap screws, typically torqued to 192 in-lbs for optimal retention.
Key Benefits:- True Concentricity: The double-split barrel allows the bushing to grip the shaft uniformly, reducing runout and protecting bearings.
- High Torque Capacity: Designed for demanding HVAC drives, providing a positive drive with robust mechanical locking.
- Reliable Maintenance: The split taper design simplifies both installation and removal, reducing downtime during pulley or sheave replacements.
- Standardized Fit: Precision-machined 1.5-inch bore and keyway allow for seamless integration across multiple B series hardware configurations.
- What is the recommended torque for the cap screws? For the B1 1/2, use a torque of 192 in-lbs on the 5/16" cap screws to ensure a safe, non-slip assembly.
- Is a key included with the bushing? While this bushing features a 3/8 x 3/16 keyseat, the shaft key is typically supplied by the installer, though some B-series units may include a specialized key for the hub side.
- Can this be used on slightly undersized shafts? It is critical to use a shaft that meets standard tolerances; mounting on an undersized shaft can lead to assembly failure or excessive vibration.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
