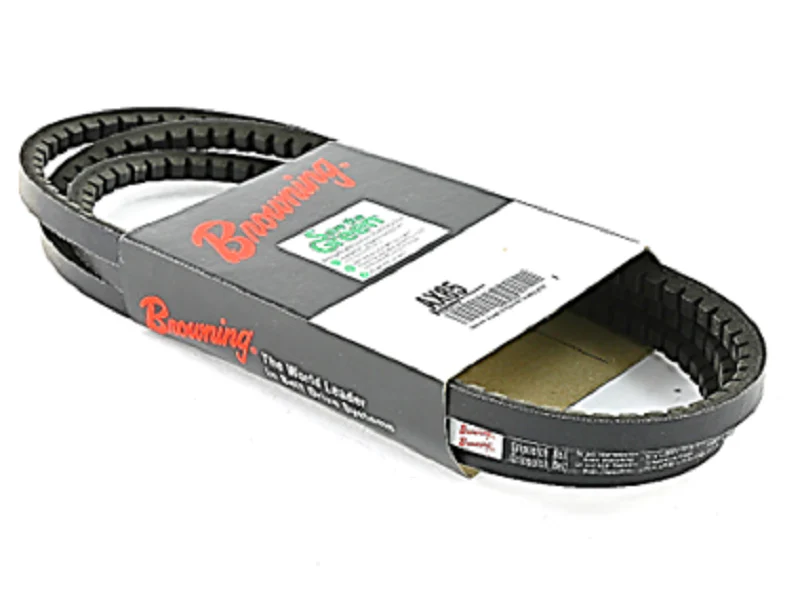

Browning AX85 Belt
When you're dealing with high-torque HVACR applications, the Browning AX85 Belt offers a heavy-duty solution that outperforms standard wrapped belts. This 87.2" Outside Diameter Type AX Gripnotch Belt is engineered with a specialized EPDM construction, allowing it to handle extreme temperatures from -60°F to 250°F. The precision-molded cogs provide superior flexibility for smaller sheave diameters while increasing surface area for rapid heat dissipation. For contractors, the "Code 1" Match system is a major advantage, ensuring that every AX85 V-Belt meets or exceeds RMA standards for consistent length, which is critical when installing matched sets on multi-groove pulleys to prevent uneven loading.
The raw-edge sidewalls of the Browning AX85 ensure a high-friction grip against pulley grooves, significantly reducing the slip and vibration that lead to premature component failure. With a 0.5-inch top width and a 86.3-inch pitch length, this industrial cogged V-belt is a direct replacement for classical A-section belts where higher horsepower capacity and increased efficiency are required. Whether you are servicing centrifugal fans, pumps, or air handling units, this cogged V-belt provides reliable power transmission in demanding commercial environments.
Key Benefits for HVACR Systems:
- High Horsepower Rating: Gripnotch technology provides up to 30% more power capacity than standard wrapped belts.
- Extreme Temperature Range: EPDM rubber stays flexible in deep-freeze applications and resists hardening in high-heat mechanical rooms.
- Reduced Maintenance: The AX85 cogged design supports higher efficiency and maintains tension longer, reducing service call frequency.
- Precision Matching: Browning Code 1 tolerance ensures that multiple belts on the same drive share the load equally.
- Raw-Edge Traction: Maximizes grip to eliminate the energy loss and noise associated with belt slippage.
Common Questions & Technical Support:
Can I use an AX85 to replace a standard A85 wrapped belt?
Yes. The Browning AX85 is fully compatible with A-section sheaves and is preferred for applications where better flexibility or higher heat resistance is needed.
Does this belt require special tensioning?
Standard tensioning procedures apply, but because of the EPDM construction and notched design, we recommend using a tension gauge to reach the lowest tension at which the belt will not slip under peak load.
What is the difference between outside diameter and pitch length?
The outside diameter is 87.2 inches, while the pitch length is 86.3 inches. Pitch length is the critical dimension for calculating drive ratios and ensuring proper fitment on the sheaves.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
