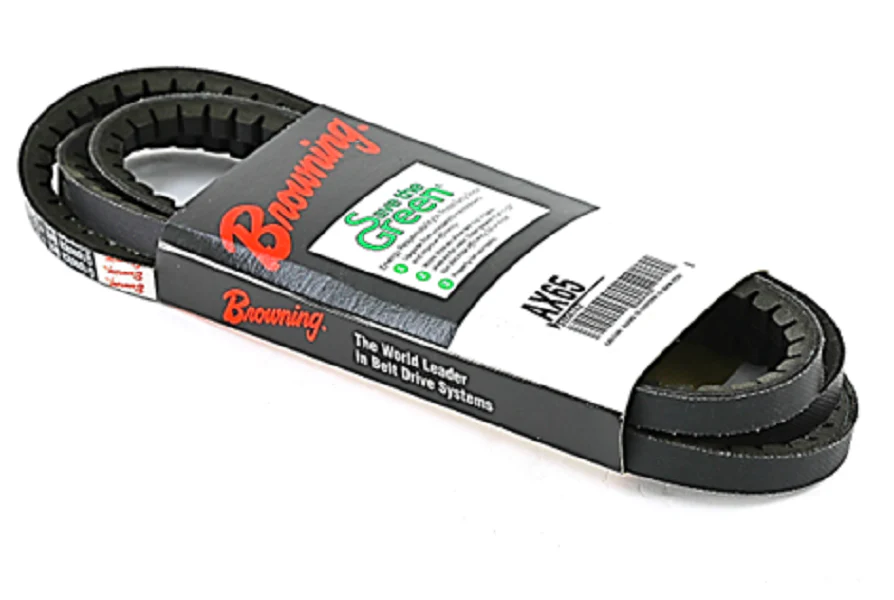

Browning AX65 Belt
The Browning AX65 Belt is a heavy-duty Gripnotch V-Belt engineered for high-demand HVACR industrial drives. Built with a 67.2-inch outside diameter and 66.3-inch pitch length, this AX section belt utilizes a raw-edge, cogged V-belt design that significantly improves power transmission efficiency compared to standard wrapped belts. The EPDM rubber compound provides a superior operating temperature range of -60°F to 250°F, ensuring the belt remains flexible and resists cracking in extreme rooftop or mechanical room conditions. Precision-molded cogs increase surface area for rapid heat dissipation, while high-tensile synthetic cords prevent elongation under heavy start-up loads. As a Code 1 Match belt, the AX65 ensures tight length tolerances for multi-groove sheave applications, minimizing vibration and extending the service life of mechanical drive components.
Key Benefits- Enhanced Power Capacity: The raw-edge sidewalls provide a higher coefficient of friction, delivering increased horsepower ratings in a 1/2-inch top width profile.
- Heat and Oil Resistance: Advanced EPDM construction ensures durability against environmental contaminants and thermal stress common in fan and blower applications.
- Static Conductivity: Meets industry standards for static dissipation, preventing hazardous charge buildup in air handling units.
- Energy Efficiency: The notched profile reduces internal bending stress, allowing the Browning AX65 to operate at up to 98% efficiency on smaller pulley diameters.
Is the AX65 interchangeable with an A65 wrapped belt?
Yes, the AX65 is the high-performance cogged version of the A65. It fits the same sheave grooves but offers better flexibility and higher torque capacity, making it a preferred OEM replacement part for energy-conscious contractors.
Can I replace a single belt in a matched set?
No. For multiple-belt drives, always replace the entire set. Mixing new and worn belts, or different brands, causes uneven load distribution and premature failure of the power transmission system.
How do I resolve belt squeal on start-up?
Squealing typically indicates insufficient tension. Use a Browning tension checker to verify the deflection force. Proper tensioning of Gripnotch belts is critical during the first 24 hours of operation to account for initial run-in.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
