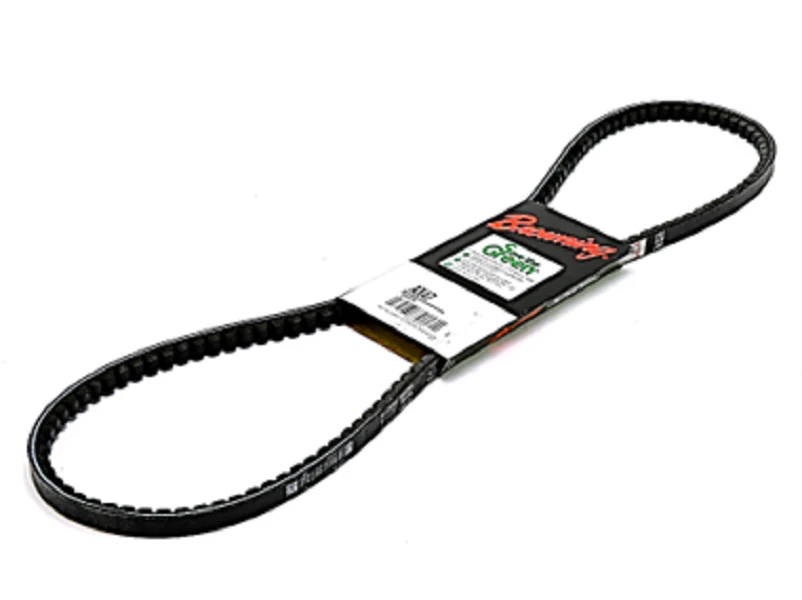

Browning AX47 Belt
The Browning AX47 Belt is a high-performance AX section Gripnotch V-belt engineered for demanding HVACR and industrial blower applications. Featuring precision molded cogs, this cogged V-belt increases surface area for superior heat dissipation and enhanced flexibility, allowing it to operate efficiently on smaller sheave diameters without the premature cracking common in standard wrapped belts. Constructed with EPDM synthetic rubber, the AX47 maintains structural integrity across a wide temperature range from -60°F to +250°F, making it a reliable choice for rooftop units and mechanical rooms subject to high ambient heat.
The raw-edge sidewalls of this 49.2-inch outside diameter belt provide a higher coefficient of friction than fabric-covered alternatives, ensuring maximum torque transmission and minimal slippage. With a 0.5-inch top width and 5/16-inch thickness, the Browning AX47 utilizes high-tensile polyester cords to resist elongation, reducing the need for frequent re-tensioning. Its Code 1 match system ensures that multiple belts used in a single drive maintain uniform length and load distribution, which is critical for extending bearing life and reducing system vibration in commercial fan drives.
- Enhanced Heat Dissipation: The Gripnotch design runs cooler than standard belts, preventing thermal degradation in enclosed motor compartments.
- Higher Horsepower Rating: Optimized power transmission efficiency allows for more horsepower in less space compared to conventional wrapped V-belts.
- Oil and Heat Resistance: The EPDM construction is naturally resistant to oils and chemicals, ensuring long-term durability in industrial environments.
- Direct Compatibility: Designed to replace standard A-section belts in HVAC air handlers and exhaust fans requiring a 48.3-inch pitch length.
Common Questions
Can I use an AX47 belt to replace a standard A47 wrapped belt?
Yes, the Browning AX47 is a direct dimensional replacement for the A47. The cogged V-belt profile offers better flexibility and higher efficiency, particularly on smaller pulleys.
What is the difference between outside diameter and pitch length for this part?
The outside diameter (OD) is 49.2 inches, while the 48.3-inch pitch length is the measurement used for center distance calculations and drive design.
Why choose EPDM over Neoprene for high-heat HVAC applications?
EPDM belts handle a broader temperature spectrum and offer better resistance to ozone and aging, which is vital for outdoor condenser fan applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
