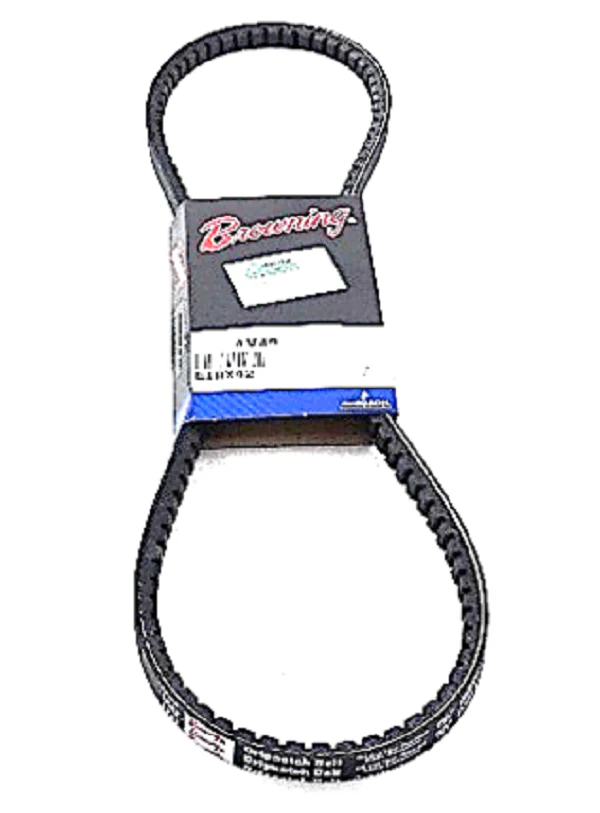

Browning AX42 Belt
The Browning AX42 Belt is a high-performance Gripnotch V-Belt designed for demanding HVACR and industrial power transmission systems. Featuring a 44.2" outside diameter and a 43.3" pitch length, this AX section cogged belt is engineered with precision-molded cogs that increase surface area for superior heat dissipation. This design allows the Browning AX42 to run cooler and maintain flexibility when wrapped around small-diameter sheaves, specifically preventing the premature cracking often seen in standard wrapped belts. Constructed from EPDM synthetic rubber, this industrial V-belt offers an expanded operating temperature range of -60°F to +250°F, ensuring reliable performance in extreme rooftop environments. The raw-edge sidewalls provide improved gripping contact with pulley grooves, reducing vibration and mechanical noise while maximizing torque transfer for fans, blowers, and pumps.
Key Benefits- EPDM construction provides exceptional resistance to oil, heat, and ozone, extending service life in harsh HVAC environments.
- Precision-molded cogs allow for higher horsepower ratings and better flexibility over standard AX42 belts.
- Code 1 Match system ensures tight tolerances, allowing for easy installation of matched sets without manual measurement.
- High-tensile polyester cords minimize elongation, reducing the need for frequent re-tensioning after initial break-in.
- Energy efficient design reduces internal friction, lowering overall power consumption for large air handling units.
Is the AX42 interchangeable with a standard A42 belt?
Yes, the AX42 shares the same 1/2" top width as a standard A42 belt but features a cogged (notched) design. This allows it to run on the same pulleys while delivering higher efficiency and better heat resistance.
What are the benefits of the cogged design in HVAC blowers?
The notches or cogs reduce bending stress as the belt travels over small sheaves. In HVAC applications, this results in cooler operation and prevents the belt from hardening and slipping over time.
Can I use this Browning AX42 in sub-zero outdoor units?
The EPDM material is specifically rated down to -60°F, making it an ideal choice for refrigeration condensers and air handlers located in extreme cold climates.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
