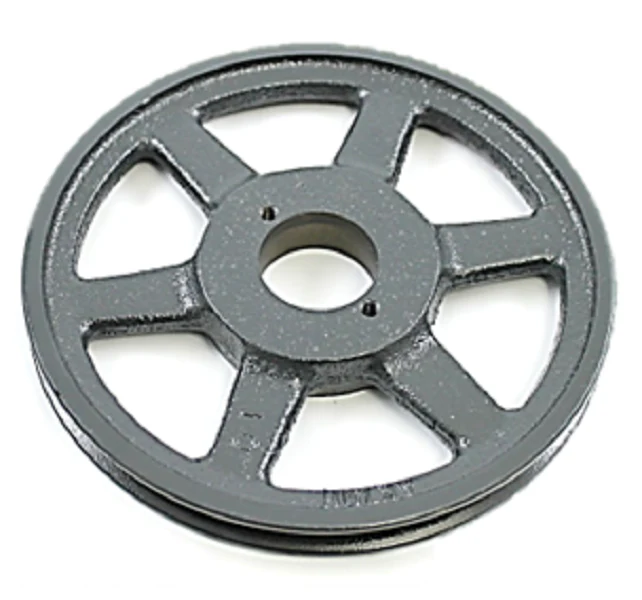

Browning AK79H Sheave
The Browning AK79H Sheave is a high-performance, precision-machined single groove cast iron sheave engineered for demanding HVACR applications. Designed with a 7.75" outside diameter, this split taper bushed sheave is optimized for 4L, A, and 3L belt compatibility. Its close-grain cast iron construction ensures maximum durability in fractional horsepower systems, while the static balancing guarantees smooth, vibration-free operation at high RPMs. This component is specifically designed to work with H series bushings, allowing for versatile bore size configurations ranging from 3/8" to 1-1/2". For contractors managing belt-driven fan assemblies or blowers, the Browning AK79H provides reliable torque transfer and precise alignment. The datum diameter of 7.5" and pitch diameter of 7.7" for A-section belts make it an essential V-belt pulley for maintaining system efficiency. This industrial-grade Browning sheave is built to withstand the rigorous duty cycles of fractional horsepower drive systems without compromising structural integrity.
- Universal Belt Compatibility: Engineered to accommodate 3L, 4L, and A cross-section classical V-belts for maximum field flexibility.
- Superior Metallurgy: Manufactured from high-grade cast iron to provide exceptional wear resistance and extended service life in abrasive environments.
- Precise Balancing: Statically balanced at the factory to eliminate system vibration, protecting motor bearings and reducing noise.
- Flexible Mounting: Designed for H-series split taper bushings, allowing for secure shaft attachment and easier removal compared to fixed-bore alternatives.
Common Questions
What is the pitch diameter of the Browning AK79H?
The pitch diameter varies based on the belt profile: it is 7.7 inches for A-section belts and 7.16 inches for 3L belts.
Which bushing series is required for this sheave?
This sheave requires a standard H-series split taper bushing. Note that the bushing is sold separately and is necessary for mounting the sheave to the motor or component shaft.
Can this sheave be used in high-moisture HVAC environments?
Yes, the cast iron construction provides the rigidity and material density needed for reliable operation in heavy-duty HVACR ventilation and air handling units.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
