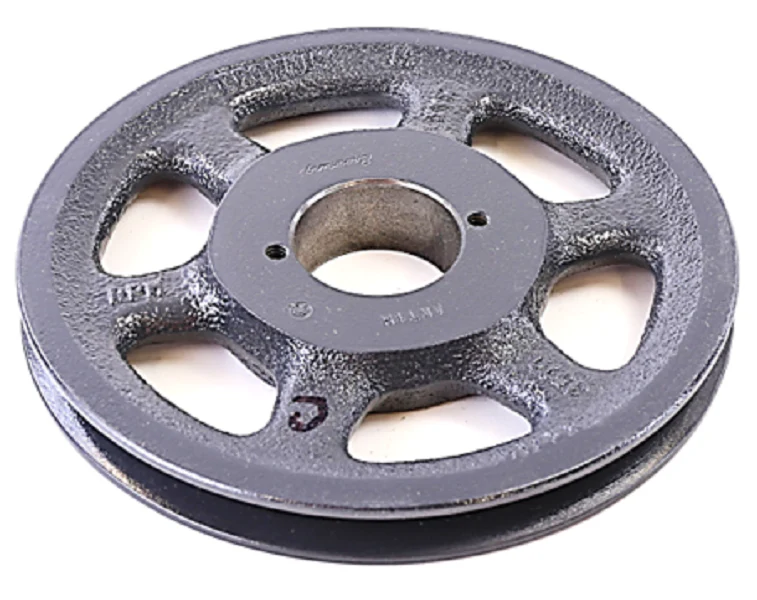

Browning AK71H Sheave
The Browning AK71H Sheave is a precision-engineered single groove cast iron sheave designed for fractional horsepower applications in HVACR systems. Built from high-quality close grain cast iron, this AK series sheave features a 6.95-inch outside diameter and is statically balanced to ensure vibration-free performance and minimize bearing wear on blower motors and fan drives. This component is optimized for power transmission efficiency using 3L, 4L, and A section V-belts, providing versatile compatibility for light-duty industrial and residential mechanical assemblies.
Engineered for use with H series split taper bushings, the AK71H allows for secure mounting on a range of shaft diameters from 3/8" to 1-1/2". The bushed bore design facilitates precise alignment and easy installation or removal, making it a standard choice for contractors performing field replacements or system upgrades. By utilizing the Browning H bushing system, technicians can achieve a robust grip on the shaft that resists loosening under thermal cycling or high-torque start-ups.
Key Benefits:
- Broad Compatibility: Seamlessly integrates with 3L, 4L, and A belts, offering flexibility for various belt-driven fan and pump configurations.
- Reduced Vibration: Every statically balanced sheave is factory-tested to maintain smooth operation, extending the life of the entire drive assembly.
- High Tolerance Machining: The use of close grain cast iron allows for tighter tolerances in the groove profile, ensuring consistent belt contact and power transfer.
- Versatile Mounting: Designed specifically for H series bushings to provide a reliable, replaceable interface for different shaft sizes.
Common Questions:
- Which belts can be used with the AK71H? This sheave is compatible with 3L, 4L, and A section classical V-belts.
- Does this sheave include the bushing? No, H series bushings are sold separately to allow for specific shaft diameter requirements.
- What is the pitch diameter for an A belt? The pitch diameter for an A belt on this sheave is 6.90 inches, while it is 6.36 inches for 3L belts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
