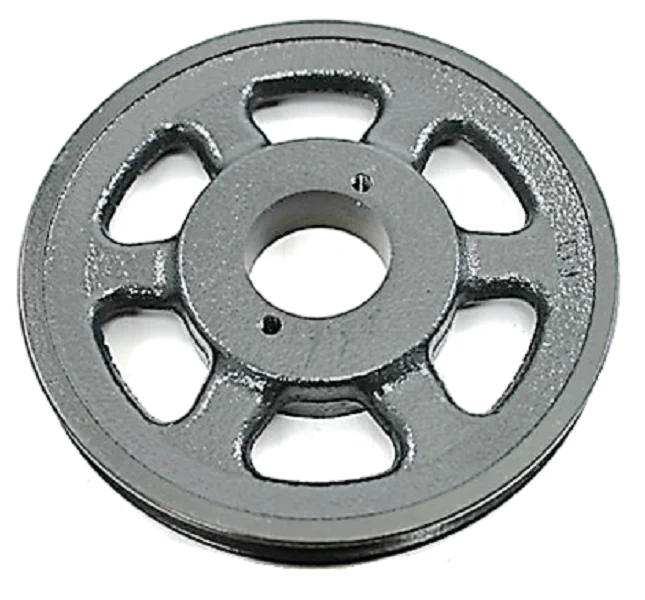

Browning AK66H Sheave
The Browning AK66H Sheave is a precision-engineered single groove cast iron pulley designed for industrial-grade performance in HVACR air handling units and blower assemblies. Engineered for use with H Series Bushings, this 6.45" outside diameter component provides a balance of low weight and high durability. It is compatible with 3L, 4L, and A section belts, offering flexibility for various drive configurations. Constructed from high-quality cast iron, the AK66H is machined to ensure minimal vibration and optimal concentricity, which is critical for extending the service life of both the motor and the belt. For contractors, the use of Browning pulleys ensures a secure fit on the shaft, reducing the risk of slippage or premature wear in high-torque applications. Whether you are performing a field replacement or a new installation, this split taper bushing sheave provides the reliability required for continuous-duty mechanical power transmission systems.
- Versatile Belt Compatibility: Designed to accommodate 3L, 4L, and A belts, allowing for diverse application across standard HVAC blowers.
- Cast Iron Durability: Provides superior heat dissipation and wear resistance compared to stamped steel alternatives.
- H-Series Bushing Interface: Allows for easy mounting and removal while maintaining a high-torque connection to the drive shaft.
- Precision Machining: Static balancing reduces harmonic vibrations, protecting sensitive motor bearings.
Common Questions
What is the datum diameter for the Browning AK66H?
The datum diameter is approximately 6.20 inches for A-section belts and 5.80 inches for 3L belts, which is critical for calculating precise blower speeds.
Will this sheave fit a 5/8" or 7/8" shaft?
Yes, provided you use the appropriate H-Series bushing. Because the AK66H is a bushing-type sheave, its bore size is determined by the specific H-bushing you select for your shaft diameter.
Is the AK66H suitable for high-static pressure applications?
Yes, its cast iron construction is ideal for the increased structural loads found in high-static air handling systems.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
