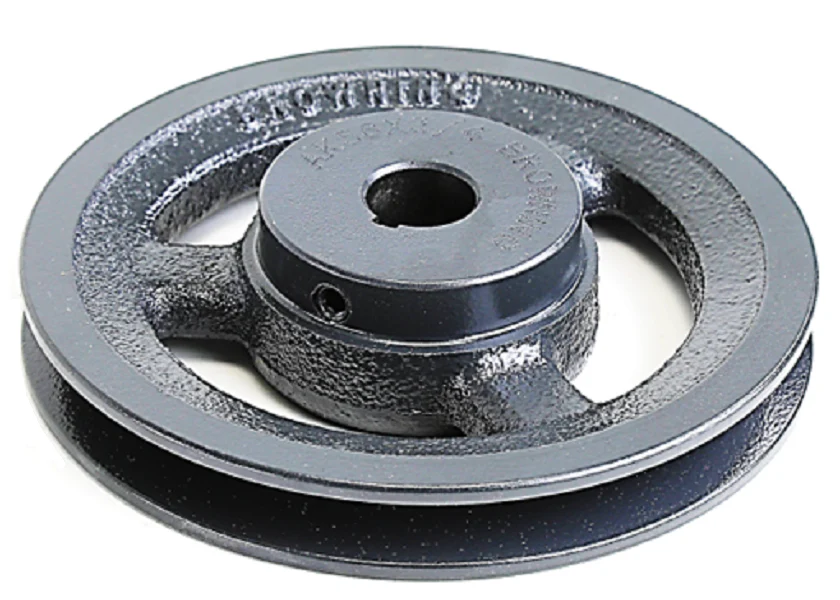

Browning AK56X3/4 Sheave
The Browning AK56X3/4 Sheave is a precision-machined, single-groove cast iron pulley designed for reliable power transmission in HVACR and light industrial applications. Engineered with a 5.45" outside diameter and a 3/4" fixed bore, this component is balanced to ensure minimal vibration and extended bearing life for the motor. It is compatible with 3L, 4L, and A section V-belts, providing versatility for various belt-drive blower and fan assemblies. The high-grade cast iron construction offers superior wear resistance compared to stamped steel alternatives, maintaining consistent groove dimensions even under heavy duty cycles. For technicians performing field replacements or system upgrades, this AK series sheave provides a precise fit with its integrated keyway and setscrew, ensuring a secure mechanical bond to the shaft. Proper alignment of this fixed bore sheave is critical to prevent premature belt edge wear and noise within the air handler cabinet.
Key Benefits
- Durable Cast Iron Construction: Built for longevity and resistance to abrasive wear in commercial environments.
- Multi-Belt Compatibility: Designed to work seamlessly with 3L, 4L, and A belts for broad application flexibility.
- Static Balance: Reduces operational noise and protects motor bearings from unnecessary radial loads.
- Precision Machined Bore: Ensures a standard 3/4 inch shaft fit for quick and accurate installation.
Common Questions
What is the datum diameter of the AK56?
The datum diameter for an A belt is typically 5.20", providing the specific pitch required for calculating drive ratios and CFM outputs.
Can this sheave be used with 4L belts?
Yes, the groove profile is specifically engineered to accommodate 4L and A section v-belts efficiently.
Does this part include the setscrew?
Yes, these fixed bore sheaves come equipped with a standard setscrew for securing the pulley to the motor or fan shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $74.62
-65%$74.62
$26.12Browning AK56X3/4 Sheave
