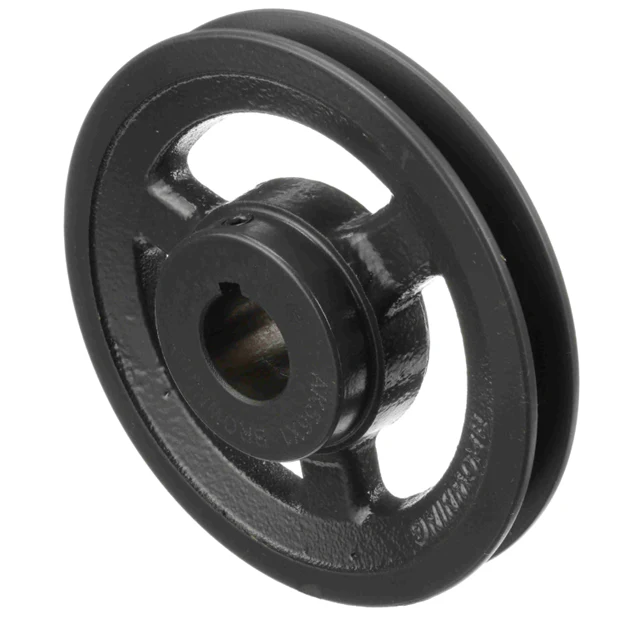

Browning AK56X1 Sheave
The Browning AK56X1 Sheave is a precision-machined 5.45" OD fixed bore pulley designed for light-duty industrial and commercial HVACR applications. Engineered from high-grade ASTM A48 Class 30 cast iron, this single groove sheave provides exceptional durability and vibration dampening compared to stamped steel alternatives. It is specifically designed with a 1" fixed bore and a standard 1/4" x 1/8" keyway, ensuring a secure fit on standard motor shafts. This AK cast iron sheave is versatile, compatible with A belt (4L) and 3L belt profiles, allowing for flexible power transmission configurations. The Browning AK56X1 is dynamically balanced to reduce bearing wear and improve drive efficiency in air handlers, condensers, and fractional horsepower fans. For contractors looking for a reliable HVAC blower pulley replacement, this component offers the tight tolerances required to maintain proper static pressure and airflow without slipping or premature belt fatigue.
- High-Grade Cast Iron Construction: Provides superior heat dissipation and structural integrity for continuous-duty cycles.
- Precision Machined Grooves: Ensures consistent belt contact and power transfer for both A and 4L v-belts.
- Standardized Bore Specs: Features a factory-broached 1" bore with keyway and setscrew for immediate installation on compatible shafts.
- Corrosion Resistance: Finished with a gray enamel coating to prevent oxidation in high-humidity mechanical rooms.
Common Questions:
What belt sizes are compatible with the Browning AK56X1?
This sheave is designed to work with 4L or A cross-section v-belts and 3L belts, providing flexibility for various drive ratios.
Does this sheave include a keyway?
Yes, the 1" fixed bore includes a standard 1/4" x 1/8" keyway and a hollow head setscrew for securing the pulley to the shaft.
Is the Browning AK56X1 suitable for high-torque applications?
This is an AK-style light-duty sheave typically used for fractional horsepower applications; for high-torque industrial drives, consider larger BK or multi-groove configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $75.61
-65%$75.61
$26.46Browning AK56X1 Sheave
The Browning AK56X1 Sheave is a precision-machined 5.45" OD fixed bore pulley designed for light-duty industrial and commercial HVACR applications. Engineered from high-grade ASTM A48 Class 30 cast iron, this single groove sheave provides exceptional durability and vibration dampening compared to stamped steel alternatives. It is specifically designed with a 1" fixed bore and a standard 1/4" x 1/8" keyway, ensuring a secure fit on standard motor shafts. This AK cast iron sheave is versatile, compatible with A belt (4L) and 3L belt profiles, allowing for flexible power transmission configurations. The Browning AK56X1 is dynamically balanced to reduce bearing wear and improve drive efficiency in air handlers, condensers, and fractional horsepower fans. For contractors looking for a reliable HVAC blower pulley replacement, this component offers the tight tolerances required to maintain proper static pressure and airflow without slipping or premature belt fatigue.
- High-Grade Cast Iron Construction: Provides superior heat dissipation and structural integrity for continuous-duty cycles.
- Precision Machined Grooves: Ensures consistent belt contact and power transfer for both A and 4L v-belts.
- Standardized Bore Specs: Features a factory-broached 1" bore with keyway and setscrew for immediate installation on compatible shafts.
- Corrosion Resistance: Finished with a gray enamel coating to prevent oxidation in high-humidity mechanical rooms.
Common Questions:
What belt sizes are compatible with the Browning AK56X1?
This sheave is designed to work with 4L or A cross-section v-belts and 3L belts, providing flexibility for various drive ratios.
Does this sheave include a keyway?
Yes, the 1" fixed bore includes a standard 1/4" x 1/8" keyway and a hollow head setscrew for securing the pulley to the shaft.
Is the Browning AK56X1 suitable for high-torque applications?
This is an AK-style light-duty sheave typically used for fractional horsepower applications; for high-torque industrial drives, consider larger BK or multi-groove configurations.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
