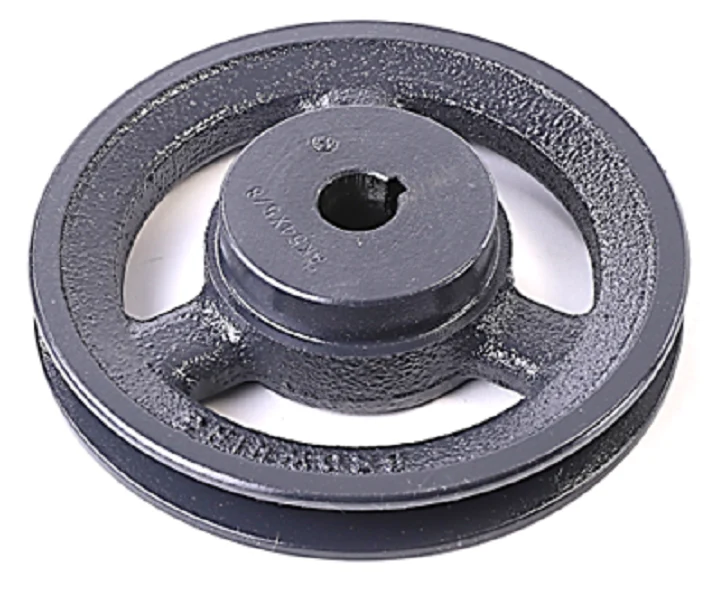

Browning AK54X5/8 Sheave
The Browning AK54X5/8 is a high-grade cast iron sheave engineered for reliable power transmission in light-duty HVAC and industrial applications. Featuring a 5.25" outside diameter and a precision-machined 5/8" fixed bore, this single groove pulley is designed for seamless compatibility with 3L, 4L, and A belt profiles. Constructed from durable ASTM Class 30 cast iron, it provides the structural integrity required to handle high-torque starts while maintaining balanced rotation. The AK sheave configuration utilizes a standard keyway and setscrew to ensure a secure shaft fit, preventing slippage during continuous operation. Whether you are performing a motor swap-out or optimizing a belt drive system, this sheave delivers consistent pitch diameters to maintain air handler efficiency. Its robust design minimizes vibration and extends belt life, making it a staple for contractors prioritizing long-term system uptime over inferior stamped-steel alternatives.
Key Benefits- Durable Cast Iron Construction: Built from ASTM Class 30 material for superior wear resistance compared to aluminum or steel.
- Universal Belt Compatibility: Versatile design accepts A section belts and 4L/3L fractional horsepower belts.
- Precision Machined Bore: The 5/8 inch bore is finished to tight tolerances for reduced shaft runout and vibration.
- Corrosion Resistance: Painted finish protects the casting from oxidation in high-humidity mechanical rooms.
What is the effective pitch diameter for this sheave?
When used with an A belt, the pitch diameter is approximately 5.0", while 3L belts result in a 4.66" pitch diameter.
Does this sheave include a keyway?
Yes, this fixed bore sheave features a standard keyway and includes a headless setscrew for secure installation.
Can I use this on a 1725 RPM motor?
Yes, the Browning AK54 is rated for standard motor speeds, provided the balance requirements of your specific application are met.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $58.45
-65%$58.45
$20.46Browning AK54X5/8 Sheave
The Browning AK54X5/8 is a high-grade cast iron sheave engineered for reliable power transmission in light-duty HVAC and industrial applications. Featuring a 5.25" outside diameter and a precision-machined 5/8" fixed bore, this single groove pulley is designed for seamless compatibility with 3L, 4L, and A belt profiles. Constructed from durable ASTM Class 30 cast iron, it provides the structural integrity required to handle high-torque starts while maintaining balanced rotation. The AK sheave configuration utilizes a standard keyway and setscrew to ensure a secure shaft fit, preventing slippage during continuous operation. Whether you are performing a motor swap-out or optimizing a belt drive system, this sheave delivers consistent pitch diameters to maintain air handler efficiency. Its robust design minimizes vibration and extends belt life, making it a staple for contractors prioritizing long-term system uptime over inferior stamped-steel alternatives.
Key Benefits- Durable Cast Iron Construction: Built from ASTM Class 30 material for superior wear resistance compared to aluminum or steel.
- Universal Belt Compatibility: Versatile design accepts A section belts and 4L/3L fractional horsepower belts.
- Precision Machined Bore: The 5/8 inch bore is finished to tight tolerances for reduced shaft runout and vibration.
- Corrosion Resistance: Painted finish protects the casting from oxidation in high-humidity mechanical rooms.
What is the effective pitch diameter for this sheave?
When used with an A belt, the pitch diameter is approximately 5.0", while 3L belts result in a 4.66" pitch diameter.
Does this sheave include a keyway?
Yes, this fixed bore sheave features a standard keyway and includes a headless setscrew for secure installation.
Can I use this on a 1725 RPM motor?
Yes, the Browning AK54 is rated for standard motor speeds, provided the balance requirements of your specific application are met.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
