Browning AK54X3/4 Sheave

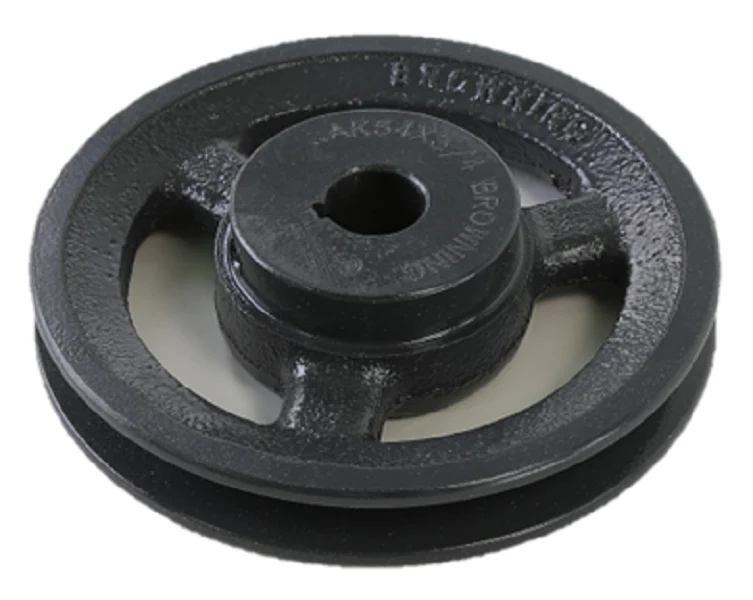

The Browning AK54X3/4 Sheave is a precision-machined cast iron pulley designed for consistent performance in light-duty power transmission applications. Featuring a 5.25" outside diameter and a 3/4" fixed bore, this single groove sheave is engineered to accommodate 3L, 4L, and A section belts. Constructed from high-tensile gray cast iron, the AK54 x 3/4 provides superior vibration dampening and thermal stability compared to stamped steel alternatives. The integrated set screw over keyway ensures a secure mechanical bond to the shaft, preventing slippage under torque loads. This fixed bore sheave is an essential component for HVAC fan drives, air handlers, and general industrial blowers where maintains a precise pitch diameter is critical for system efficiency. Rely on this Browning sheave for industrial-grade durability and exact tolerance specifications in your next mechanical drive replacement or installation.
- Optimized Compatibility: Designed for seamless integration with A belts and 4L fractional horsepower belts.
- Durable Construction: High-grade cast iron provides excellent wear resistance and longevity in demanding environments.
- Precision Machining: Ensures balanced operation to reduce bearing wear and operational noise in HVACR motor drives.
- Static Balance: Each unit is balanced to minimize vibration, protecting the integrity of the motor shaft and connected components.
Common Questions
What belt sizing is compatible with the AK54X3/4?
This sheave is specifically designed to work with 3L, 4L, and A series V-belts, making it a versatile choice for standard V-belt drive systems.
Does this sheave require a separate bushing?
No, this is a fixed bore sheave with a 3/4" finished opening, meaning it installs directly onto the shaft without the need for an H-series or tapered bushing.
Can this be used on high-static pressure blowers?
Yes, the cast iron construction and secure keyway mounting make it suitable for consistent performance in high-static HVAC applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $66.81
-65%$66.81
$23.38Browning AK54X3/4 Sheave
The Browning AK54X3/4 Sheave is a precision-machined cast iron pulley designed for consistent performance in light-duty power transmission applications. Featuring a 5.25" outside diameter and a 3/4" fixed bore, this single groove sheave is engineered to accommodate 3L, 4L, and A section belts. Constructed from high-tensile gray cast iron, the AK54 x 3/4 provides superior vibration dampening and thermal stability compared to stamped steel alternatives. The integrated set screw over keyway ensures a secure mechanical bond to the shaft, preventing slippage under torque loads. This fixed bore sheave is an essential component for HVAC fan drives, air handlers, and general industrial blowers where maintains a precise pitch diameter is critical for system efficiency. Rely on this Browning sheave for industrial-grade durability and exact tolerance specifications in your next mechanical drive replacement or installation.
- Optimized Compatibility: Designed for seamless integration with A belts and 4L fractional horsepower belts.
- Durable Construction: High-grade cast iron provides excellent wear resistance and longevity in demanding environments.
- Precision Machining: Ensures balanced operation to reduce bearing wear and operational noise in HVACR motor drives.
- Static Balance: Each unit is balanced to minimize vibration, protecting the integrity of the motor shaft and connected components.
Common Questions
What belt sizing is compatible with the AK54X3/4?
This sheave is specifically designed to work with 3L, 4L, and A series V-belts, making it a versatile choice for standard V-belt drive systems.
Does this sheave require a separate bushing?
No, this is a fixed bore sheave with a 3/4" finished opening, meaning it installs directly onto the shaft without the need for an H-series or tapered bushing.
Can this be used on high-static pressure blowers?
Yes, the cast iron construction and secure keyway mounting make it suitable for consistent performance in high-static HVAC applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
