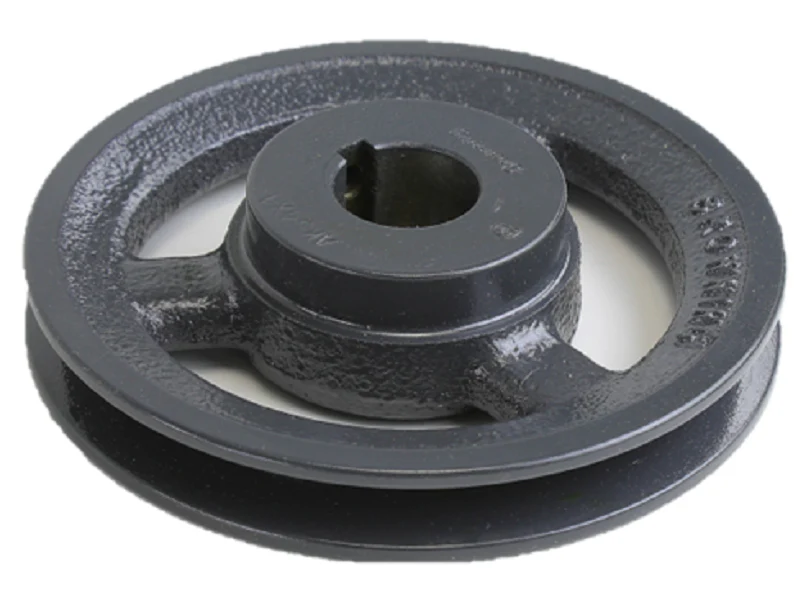

Browning AK54X1 Sheave
The Browning AK54X1 Sheave is a precision-machined 5.25" OD single groove pulley engineered for reliable power transmission in light-duty HVAC and industrial blower applications. Constructed from high-grade ASTM A48 Class 30 cast iron, this fixed-bore sheave features a 1" bore size, providing a stable, vibration-resistant fit on standard motor shafts. Designed for versatility, the AK54X1 is compatible with 3L, 4L, and A-section belts, making it a critical component for technicians adjusting static pressure and airflow in air handling units. The cast iron construction ensures superior thermal dissipation and durability compared to stamped steel alternatives, maintaining pitch diameter integrity under high torque loads. Each unit is finished with a protective gray coating to prevent oxidation in high-humidity environments. For contractors performing preventative maintenance or system balancing, the AK54X1 offers a dependable replacement sheave solution that ensures V-belt drive efficiency and reduces tangential stress on the drive train assembly.
Key Performance Benefits
- Standard 1" Fixed Bore: Precision-reamed for a secure shaft interface and reduced rotational wobble.
- Broad Belt Compatibility: Versatile grooves accommodate 3L, 4L, and A-series V-belts for flexible field applications.
- Cast Iron Durability: Machined from heavy-duty cast iron to resist wear and maintain pitch diameter accuracy.
- HVACR Optimization: Ideal for belt-driven fans and blowers where consistent RPM ratios are required.
Common Technical Questions
What is the effective pitch diameter for an A-series belt?
When utilizing an A-section belt, the pitch diameter is typically 4.90", which is critical for calculating the correct drive ratio and fan speed.
Does this sheave require a separate bushing?
No, the Browning AK54X1 is a fixed-bore sheave. It is designed to mount directly onto a 1-inch keyed shaft without the need for additional bushings.
Can this be used on high-horsepower industrial motors?
This AK-type sheave is specifically designed for fractional horsepower (FHP) applications and light-duty industrial drives. Always verify the motor's torque output against the sheave's cast iron limits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $74.81
-65%$74.81
$26.18Browning AK54X1 Sheave
The Browning AK54X1 Sheave is a precision-machined 5.25" OD single groove pulley engineered for reliable power transmission in light-duty HVAC and industrial blower applications. Constructed from high-grade ASTM A48 Class 30 cast iron, this fixed-bore sheave features a 1" bore size, providing a stable, vibration-resistant fit on standard motor shafts. Designed for versatility, the AK54X1 is compatible with 3L, 4L, and A-section belts, making it a critical component for technicians adjusting static pressure and airflow in air handling units. The cast iron construction ensures superior thermal dissipation and durability compared to stamped steel alternatives, maintaining pitch diameter integrity under high torque loads. Each unit is finished with a protective gray coating to prevent oxidation in high-humidity environments. For contractors performing preventative maintenance or system balancing, the AK54X1 offers a dependable replacement sheave solution that ensures V-belt drive efficiency and reduces tangential stress on the drive train assembly.
Key Performance Benefits
- Standard 1" Fixed Bore: Precision-reamed for a secure shaft interface and reduced rotational wobble.
- Broad Belt Compatibility: Versatile grooves accommodate 3L, 4L, and A-series V-belts for flexible field applications.
- Cast Iron Durability: Machined from heavy-duty cast iron to resist wear and maintain pitch diameter accuracy.
- HVACR Optimization: Ideal for belt-driven fans and blowers where consistent RPM ratios are required.
Common Technical Questions
What is the effective pitch diameter for an A-series belt?
When utilizing an A-section belt, the pitch diameter is typically 4.90", which is critical for calculating the correct drive ratio and fan speed.
Does this sheave require a separate bushing?
No, the Browning AK54X1 is a fixed-bore sheave. It is designed to mount directly onto a 1-inch keyed shaft without the need for additional bushings.
Can this be used on high-horsepower industrial motors?
This AK-type sheave is specifically designed for fractional horsepower (FHP) applications and light-duty industrial drives. Always verify the motor's torque output against the sheave's cast iron limits.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
