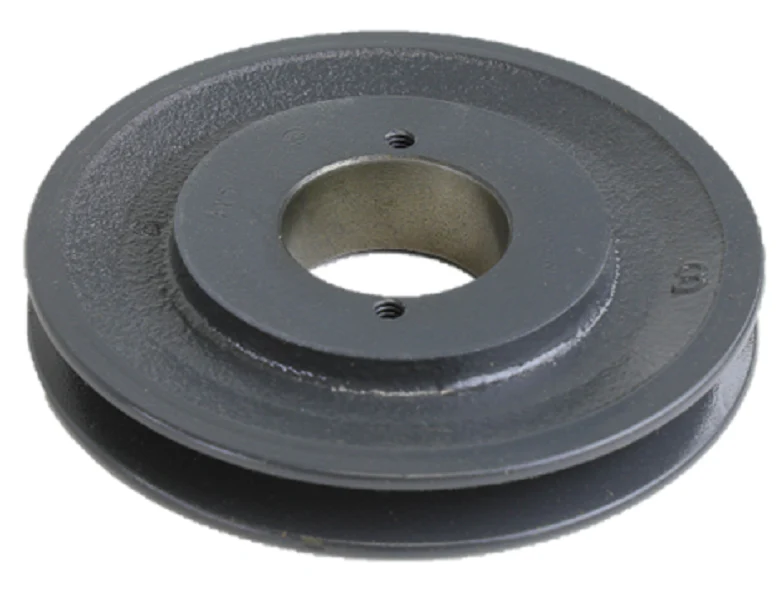

Browning AK54H Sheave
The Browning AK54H Sheave is a precision-engineered single groove cast iron sheave designed for reliable power transmission in fractional horsepower applications. Featuring a 5.25" outside diameter, this AK series sheave is balanced to ensure smooth, vibration-free operation in demanding HVACR environments. It is specifically designed to be used with H series bushings, providing a secure split taper bushed connection that simplifies installation and removal on various shaft sizes. This versatile pulley is compatible with multiple belt profiles, including 3L, 4L, and A belts, making it a staple for contractors maintaining blower units, fans, and small motor drives.
Constructed from high-grade close grain cast iron, the Browning AK54H offers superior durability and heat dissipation compared to pressed steel alternatives. The 5.00" datum diameter for A-section belts ensures accurate drive ratios, while the statically balanced design prevents premature bearing wear on the motor and driven equipment. Whether you are performing a field replacement or a new system integration, this cast iron V-belt pulley provides the structural integrity required for continuous industrial service.
Key Benefits:- Multi-Belt Compatibility: Engineered to run 3L, 4L, and A section belts, providing maximum flexibility for field service.
- Precision Balancing: Statically balanced at the factory to minimize noise and mechanical vibration.
- H-Bushing Interface: Utilizes the split taper H-series bushing system for a concentric, high-torque grip on the shaft.
- Rugged Material: Machined from fine-grained cast iron for extended service life in high-duty cycle HVAC applications.
Which bushing is required for this sheave?
This sheave requires a standard H-series split taper bushing, which must be sized according to your motor or fan shaft diameter.
What is the maximum RPM for this cast iron sheave?
Standard Browning AK sheaves are generally rated for rim speeds up to 6,500 feet per minute; always verify your specific drive calculations to ensure safe operation.
Can I use a "B" section belt with the AK54H?
No, this sheave is specifically grooved for 3L, 4L, and A belts. Using a B-section belt will result in improper seating and accelerated belt wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
