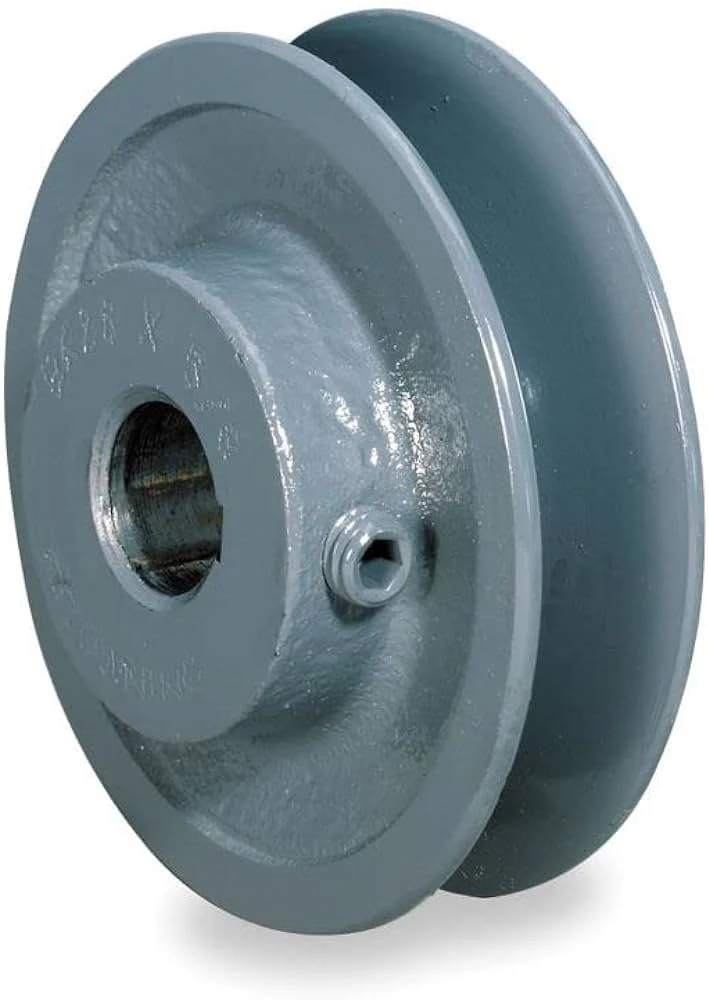

Browning AK46X7/8 Sheave
The Browning AK46X7/8 Sheave is a precision-engineered single groove cast iron pulley designed for high-performance power transmission in commercial HVACR systems. Featuring a 4.45" outside diameter and a 7/8" fixed bore, this component is manufactured with high-grade gray cast iron for superior durability and vibration dampening. This sheave is optimized for use with 3L, 4L, and A sectional belts, ensuring a precise fit and maximum torque transfer. The machined finish and integrated keyway provide a secure shaft interface, which is critical for maintaining alignment in belt-driven fans, blowers, and pump applications. By utilizing this standard pitch diameter sheave, contractors can ensure consistent RPM ratios and reduce parasitic energy loss. Its robust construction resists wear under high static pressure conditions, making it a reliable choice for motor-driven equipment maintenance. Professional technicians rely on the AK46 series sheave for its concentricity and balance, which significantly minimizes harmonic noise and extends the service life of both the motor and the driven components.
- Versatile Belt Compatibility: Engineered to work seamlessly with 3L, 4L, and A belts, providing flexibility for various drive configurations.
- Cast Iron Construction: High-grade material ensures thermal stability and resistance to deformation under heavy mechanical loads.
- Fixed Bore Design: The 7/8" bore with included set screws allows for immediate installation without the need for additional bushings.
- Optimized Diameter: The 4.45" OD provides accurate ratios for standard industrial fan and blower applications.
Common Questions
What is the maximum RPM rating for this sheave?
The Browning AK46 series is typically designed for operation within standard industrial motor speeds; however, dynamic balancing may be required for applications exceeding 6,500 FPM rim speed.
Can this pulley be used with 5L or B-series belts?
No, this sheave is specifically machined for the narrower profiles of 3L, 4L, and A belts. Using a B-section belt will result in improper seating and accelerated belt wear.
Is the keyway included in the 7/8" bore?
Yes, this fixed bore sheave features a standard keyway and includes a set screw to ensure a secure mechanical bond to the motor or drive shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $83.24
-65%$83.24
$29.13Browning AK46X7/8 Sheave
The Browning AK46X7/8 Sheave is a precision-engineered single groove cast iron pulley designed for high-performance power transmission in commercial HVACR systems. Featuring a 4.45" outside diameter and a 7/8" fixed bore, this component is manufactured with high-grade gray cast iron for superior durability and vibration dampening. This sheave is optimized for use with 3L, 4L, and A sectional belts, ensuring a precise fit and maximum torque transfer. The machined finish and integrated keyway provide a secure shaft interface, which is critical for maintaining alignment in belt-driven fans, blowers, and pump applications. By utilizing this standard pitch diameter sheave, contractors can ensure consistent RPM ratios and reduce parasitic energy loss. Its robust construction resists wear under high static pressure conditions, making it a reliable choice for motor-driven equipment maintenance. Professional technicians rely on the AK46 series sheave for its concentricity and balance, which significantly minimizes harmonic noise and extends the service life of both the motor and the driven components.
- Versatile Belt Compatibility: Engineered to work seamlessly with 3L, 4L, and A belts, providing flexibility for various drive configurations.
- Cast Iron Construction: High-grade material ensures thermal stability and resistance to deformation under heavy mechanical loads.
- Fixed Bore Design: The 7/8" bore with included set screws allows for immediate installation without the need for additional bushings.
- Optimized Diameter: The 4.45" OD provides accurate ratios for standard industrial fan and blower applications.
Common Questions
What is the maximum RPM rating for this sheave?
The Browning AK46 series is typically designed for operation within standard industrial motor speeds; however, dynamic balancing may be required for applications exceeding 6,500 FPM rim speed.
Can this pulley be used with 5L or B-series belts?
No, this sheave is specifically machined for the narrower profiles of 3L, 4L, and A belts. Using a B-section belt will result in improper seating and accelerated belt wear.
Is the keyway included in the 7/8" bore?
Yes, this fixed bore sheave features a standard keyway and includes a set screw to ensure a secure mechanical bond to the motor or drive shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
