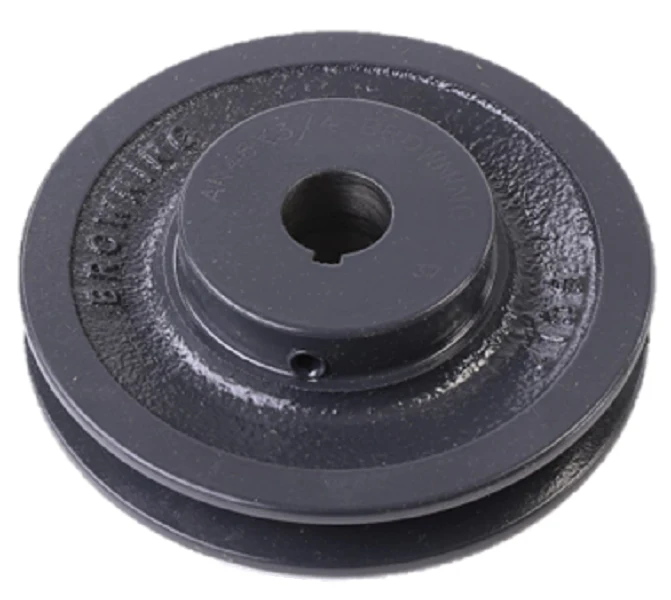

Browning AK46X3/4 Sheave
For veteran contractors looking to eliminate drive-train vibration in fractional horsepower (FHP) applications, the Browning AK46X3/4 Sheave is a trade-standard solution. This 4.45" outside diameter sheave is precision-machined from high-tensile gray cast iron, providing far superior wear resistance compared to stamped steel alternatives. As a fixed bore sheave with a 3/4" finished diameter, it features a factory-cut 3/16" x 3/32" keyway and a standard hollow head setscrew, allowing for immediate installation on blower motor shafts without the need for additional bushings.
The single groove AK46 is designed for maximum versatility, providing a precise fit for 3L, 4L, and A section V-belts. Each unit is statically balanced at the factory to ensure true-running performance, which is critical for extending the life of motor bearings and reducing decibel levels in air handling units. The cast iron V-belt pulley construction effectively dissipates heat, maintaining belt grip and preventing premature glazing during continuous-duty cycles. This HVAC blower pulley is the reliable choice for technicians replacing worn adjustable sheaves with a permanent, high-stability fixed-ratio drive.
Key Benefits:
- Precision Machined: Constructed from grade 35 cast iron for long-term dimensional stability and resistance to "dishing."
- Optimized Balance: Statically balanced to minimize harmonic vibration in fan and blower assemblies.
- Fixed Bore Logic: The 3/4" finished bore provides a high-torque connection with less runout than bushed sheaves.
- Multi-Belt Compatibility: Engineered to match the pitch and datum diameters of 4L and A section belts.
- Corrosion Protection: Finished with a durable phosphate coat to prevent seizing in high-humidity mechanical rooms.
Common Questions:
- Can I use an AX belt with this sheave? Yes, the groove profile is compatible with AX and Gripnotch belts, though standard 4L or A belts are frequently used for FHP applications.
- How does this affect my blower RPM? The 4.45" OD (4.20" Datum Diameter for A-belts) determines the output ratio; ensure your motor's sheave diameter aligns with the required CFM specifications.
- Does this include the key? No, while the 0.75" bore includes the standard keyway and setscrew, the keystock must be sourced separately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $64.04
-65%$64.04
$22.41Browning AK46X3/4 Sheave
For veteran contractors looking to eliminate drive-train vibration in fractional horsepower (FHP) applications, the Browning AK46X3/4 Sheave is a trade-standard solution. This 4.45" outside diameter sheave is precision-machined from high-tensile gray cast iron, providing far superior wear resistance compared to stamped steel alternatives. As a fixed bore sheave with a 3/4" finished diameter, it features a factory-cut 3/16" x 3/32" keyway and a standard hollow head setscrew, allowing for immediate installation on blower motor shafts without the need for additional bushings.
The single groove AK46 is designed for maximum versatility, providing a precise fit for 3L, 4L, and A section V-belts. Each unit is statically balanced at the factory to ensure true-running performance, which is critical for extending the life of motor bearings and reducing decibel levels in air handling units. The cast iron V-belt pulley construction effectively dissipates heat, maintaining belt grip and preventing premature glazing during continuous-duty cycles. This HVAC blower pulley is the reliable choice for technicians replacing worn adjustable sheaves with a permanent, high-stability fixed-ratio drive.
Key Benefits:
- Precision Machined: Constructed from grade 35 cast iron for long-term dimensional stability and resistance to "dishing."
- Optimized Balance: Statically balanced to minimize harmonic vibration in fan and blower assemblies.
- Fixed Bore Logic: The 3/4" finished bore provides a high-torque connection with less runout than bushed sheaves.
- Multi-Belt Compatibility: Engineered to match the pitch and datum diameters of 4L and A section belts.
- Corrosion Protection: Finished with a durable phosphate coat to prevent seizing in high-humidity mechanical rooms.
Common Questions:
- Can I use an AX belt with this sheave? Yes, the groove profile is compatible with AX and Gripnotch belts, though standard 4L or A belts are frequently used for FHP applications.
- How does this affect my blower RPM? The 4.45" OD (4.20" Datum Diameter for A-belts) determines the output ratio; ensure your motor's sheave diameter aligns with the required CFM specifications.
- Does this include the key? No, while the 0.75" bore includes the standard keyway and setscrew, the keystock must be sourced separately.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
