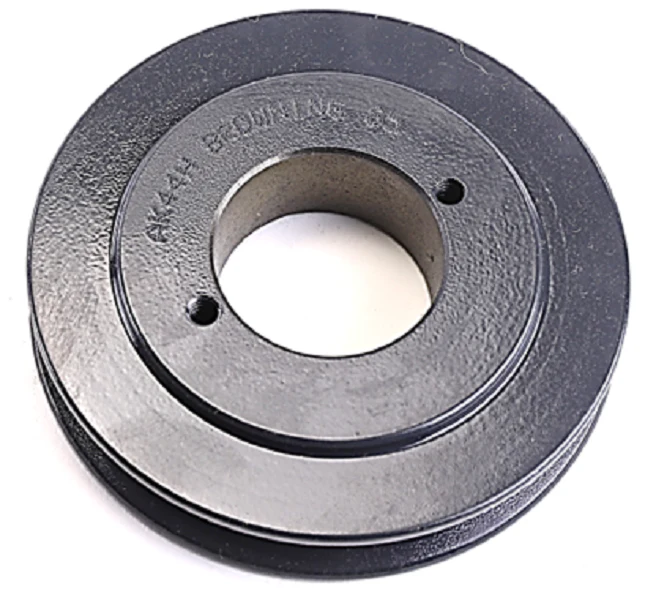

Browning AK44H Sheave
The Browning AK44H Sheave is a precision-engineered single groove cast iron sheave designed for reliable power transmission in fractional horsepower HVACR applications. Constructed from high-density, close-grain cast iron, this 4.25" outside diameter sheave is statically balanced to ensure vibration-free operation and extended mechanical life for both the motor and driven components. It features a split taper bushed design specifically for use with H series bushings, accommodating a wide bore range from 3/8" to 1-1/2" for maximum field flexibility. This AK series FHP sheave is compatible with 3L, 4L, and A sectional V-belts, making it a versatile choice for blower assemblies and condenser fan replacements where precision alignment and consistent pitch diameter are critical. By utilizing the H bushing system, technicians can achieve a secure, concentric fit on the shaft, eliminating the slippage and fretting corrosion often associated with standard set-screw pulleys.
Key Benefits- Optimized Compatibility: Engineered for seamless integration with H series split taper bushings and A belt sheaves.
- Vibration Dampening: Statically balanced cast iron construction reduces harmonic resonance in air handling units.
- Versatile Belt Support: Accurately machined grooves support 3L, 4L, and A section V-belts for diverse torque requirements.
- Precision Machining: Close-grain iron allows for tighter tolerances on the pitch diameter and 4.25" OD.
What belt sizes are compatible with the Browning AK44H?
This sheave is designed to work with 3L, 4L, and A (including A-grip and 4LK) V-belts, though the pitch diameter varies slightly depending on the belt cross-section used.
Does this sheave include the bushing?
No, the AK44H sheave is a bushed-type component. You must pair it with an H series bushing sized to your specific motor or fan shaft diameter.
Can I use this for high-horsepower industrial drives?
This is a Fractional Horsepower (FHP) component. For multi-groove or high-torque industrial transmissions, verify the load ratings against the Browning classical belt catalog specifications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
