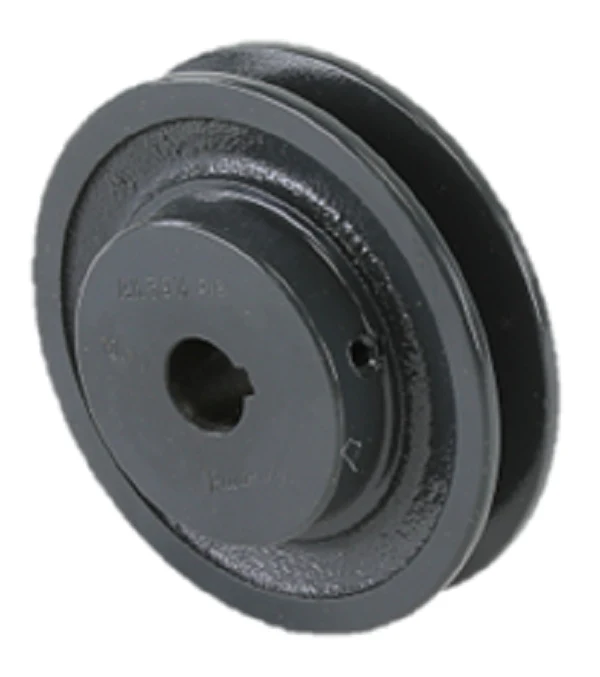

Browning AK39X5/8 Sheave
Engineered for high-reliability fractional horsepower belt drive systems, the Browning AK39X5/8 Sheave is a trade-grade mechanical component designed for demanding HVACR and light industrial applications. This single groove AK cast iron sheave is manufactured from fine-grain cast iron, ensuring maximum durability and consistent belt tracking. With a 3.75-inch outside diameter and a 5/8-inch fixed bore, it provides a secure, direct-to-shaft fit for 3L, 4L, and A-section belts. Each unit is precision-machined and statically balanced to eliminate rotational vibration, protecting your motor bearings and extending the service life of your drive assembly. Whether you are replacing a worn pulley on a commercial blower or timing a new fan system, this cast iron V-belt pulley offers the structural integrity required for continuous duty performance. The finished bore design includes a standard keyway and setscrew, providing a "drop-in" solution that saves time on the job site without sacrificing torque transmission efficiency.
Key Benefits- Precision Dynamic Balancing: Statically balanced at the factory to ensure smooth, vibration-free operation in high-RPM fan and blower applications.
- Broad Belt Compatibility: Versatile single-groove design accommodates 3L, 4L (FHP), and A-series V-belts for maximum field flexibility.
- Robust Cast Iron Construction: High-density cast iron material resists groove wear and provides superior heat dissipation compared to stamped steel alternatives.
- Optimized Power Transfer: Accurate groove profiling ensures 100% belt-to-sheave contact, reducing slippage and improving energy efficiency.
What is the difference between the outside diameter and pitch diameter for this sheave?
The Browning AK39X5/8 has an outside diameter (O.D.) of 3.75 inches. For drive calculations, the datum or pitch diameter is approximately 3.50 inches when using "A" belts and 3.16 inches when using 3L belts.
Does this sheave require a separate bushing for installation?
No. This is a fixed bore sheave with a 5/8" finished bore, meaning it mounts directly onto a 5/8" shaft using the integrated keyway and setscrew without the need for an H-bushing or QT-bushing.
Can I use this pulley on a motor with a 1/2-inch shaft?
No, this specific model is precision-machined for a 5/8" shaft. If your motor has a different shaft diameter, you must select the corresponding AK39 model with the correct bore size to ensure a concentric fit and prevent shaft damage.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $55.65
-65%$55.65
$19.48Browning AK39X5/8 Sheave
