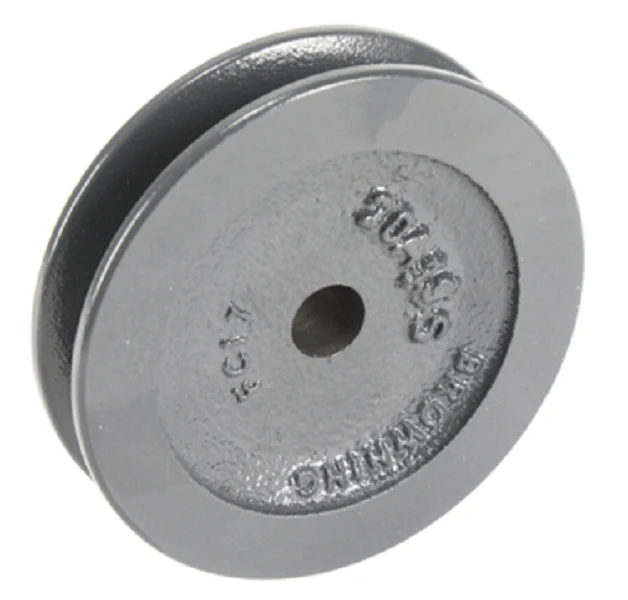

Browning AK34X1/2 Sheave
The Browning AK34X1/2 Sheave is a precision-engineered fixed bore V-belt pulley designed for fractional horsepower (FHP) applications in light-duty HVACR and industrial air-handling systems. Constructed from close-grain cast iron, this single groove sheave is accurately machined to tight tolerances and statically balanced to minimize vibration and extend the service life of your blower motors and bearings. Featuring a 3.45" outside diameter and a 1/2" finished bore, it is engineered for seamless integration with 3L, 4L, and A-section belts. The datum diameter of 2.86" for 3L belts and 3.20" for A belts ensures accurate pitch diameter calculations, which is critical for maintaining precise fan speed and proper air balance in commercial rooftops and ventilation units. This cast iron pulley provides the belt-to-groove friction necessary for efficient power transmission without the slippage or noise associated with lower-quality alternatives.
Key Benefits- Statically Balanced: Each unit is balanced at the factory to eliminate high-speed harmonic vibrations that cause premature wear on motor shafts.
- Material Integrity: Manufactured from fine-grain cast iron for superior durability and heat dissipation compared to stamped steel options.
- Versatile Compatibility: Designed for universal fitment with 3L, 4L, and A belts, allowing for flexible maintenance across various HVACR platforms.
- Precision Machined: The 1/2" finished bore ensures a tight, secure fit on the motor shaft, preventing eccentric rotation or "wobble."
What is the difference between outside diameter and pitch diameter for this sheave?
The 3.45" outside diameter is the physical dimension of the outer rim. For speed calculations (RPM), the pitch diameter should be used, which is approximately 3.40" for A-section belts or 2.86" datum for 3L belts.
Will this work with a keyed or rounded motor shaft?
This specific model features a 1/2" finished bore. While Browning sheaves are typically secured via a set screw, always verify if your application requires a specific keyway, as many 1/2" FHP bores are designed for smooth shafts with a set screw seating on the flat.
Is this sheave compatible with AX belt profiles?
Yes, the A-section groove is designed to accommodate both standard A belts and cogged AX belts for improved efficiency and flexibility in high-torque startups.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $65.15
-65%$65.15
$22.80Browning AK34X1/2 Sheave
The Browning AK34X1/2 Sheave is a precision-engineered fixed bore V-belt pulley designed for fractional horsepower (FHP) applications in light-duty HVACR and industrial air-handling systems. Constructed from close-grain cast iron, this single groove sheave is accurately machined to tight tolerances and statically balanced to minimize vibration and extend the service life of your blower motors and bearings. Featuring a 3.45" outside diameter and a 1/2" finished bore, it is engineered for seamless integration with 3L, 4L, and A-section belts. The datum diameter of 2.86" for 3L belts and 3.20" for A belts ensures accurate pitch diameter calculations, which is critical for maintaining precise fan speed and proper air balance in commercial rooftops and ventilation units. This cast iron pulley provides the belt-to-groove friction necessary for efficient power transmission without the slippage or noise associated with lower-quality alternatives.
Key Benefits- Statically Balanced: Each unit is balanced at the factory to eliminate high-speed harmonic vibrations that cause premature wear on motor shafts.
- Material Integrity: Manufactured from fine-grain cast iron for superior durability and heat dissipation compared to stamped steel options.
- Versatile Compatibility: Designed for universal fitment with 3L, 4L, and A belts, allowing for flexible maintenance across various HVACR platforms.
- Precision Machined: The 1/2" finished bore ensures a tight, secure fit on the motor shaft, preventing eccentric rotation or "wobble."
What is the difference between outside diameter and pitch diameter for this sheave?
The 3.45" outside diameter is the physical dimension of the outer rim. For speed calculations (RPM), the pitch diameter should be used, which is approximately 3.40" for A-section belts or 2.86" datum for 3L belts.
Will this work with a keyed or rounded motor shaft?
This specific model features a 1/2" finished bore. While Browning sheaves are typically secured via a set screw, always verify if your application requires a specific keyway, as many 1/2" FHP bores are designed for smooth shafts with a set screw seating on the flat.
Is this sheave compatible with AX belt profiles?
Yes, the A-section groove is designed to accommodate both standard A belts and cogged AX belts for improved efficiency and flexibility in high-torque startups.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
