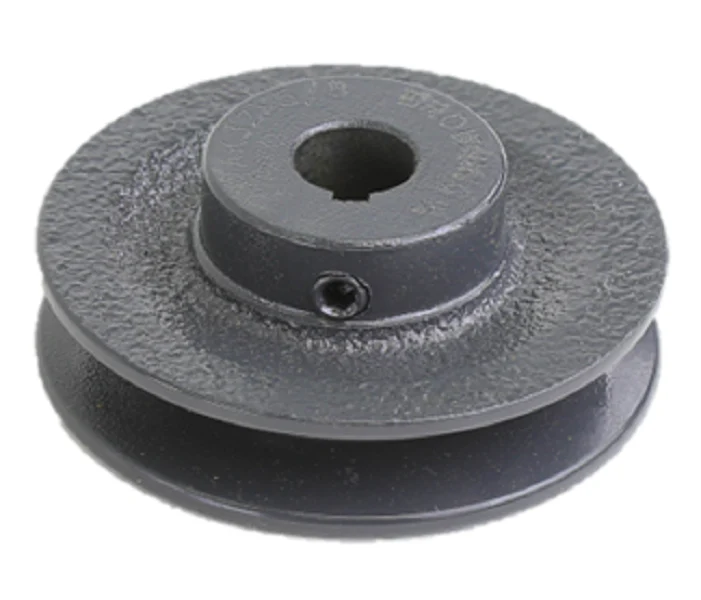

Browning AK32X5/8 Sheave
The Browning AK32X5/8 Sheave is a precision-engineered single groove cast iron pulley designed for consistent performance in light-duty HVACR and industrial blower applications. Manufactured from high-grade gray cast iron, this AK series sheave features a 3.25" outside diameter and a 5/8" fixed bore with a standard keyway and setscrew for secure shaft attachment. Specifically designed for versatility, it is compatible with 3L, 4L, and A section V-belts, ensuring efficient power transfer and reduced vibration in belt-driven systems. The static balanced construction minimizes bearing wear, extending the service life of your drive assembly. Contractors rely on the Browning AK32 for its reliable pitch diameter consistency and rugged durability in demanding air handling environments. Whether you are performing a field replacement or a new system installation, this fixed bore sheave provides the structural integrity required for precise V-belt drive alignment and optimal torque transmission.
- Optimized Power Transfer: Precision-machined grooves ensure maximum belt contact and reduced slippage for A-belt drives.
- Durable Construction: Heavy-duty cast iron pulleys offer superior wear resistance compared to stamped steel alternatives.
- Broad Compatibility: Engineered to accommodate 3L, 4L, and A belts, providing flexibility for various motor and fan speed requirements.
- Easy Installation: The 5/8 inch bore features a standard keyway for rapid, secure mounting on NEMA frame motors.
Common Technical Questions
What is the effective pitch diameter for this sheave?
When utilizing an A belt, the pitch diameter is approximately 3.0 inches, while a 4L belt provides similar engagement for standard HVAC blower calculations.
Can this sheave be used in high-static pressure fan applications?
Yes, the Browning AK32X5/8 is designed for the rigorous duty cycles found in commercial air handlers and exhaust systems.
Is the bore size adjustable?
No, this is a fixed bore sheave; for applications requiring different shaft sizes, a Browning bush-type sheave would be necessary.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
