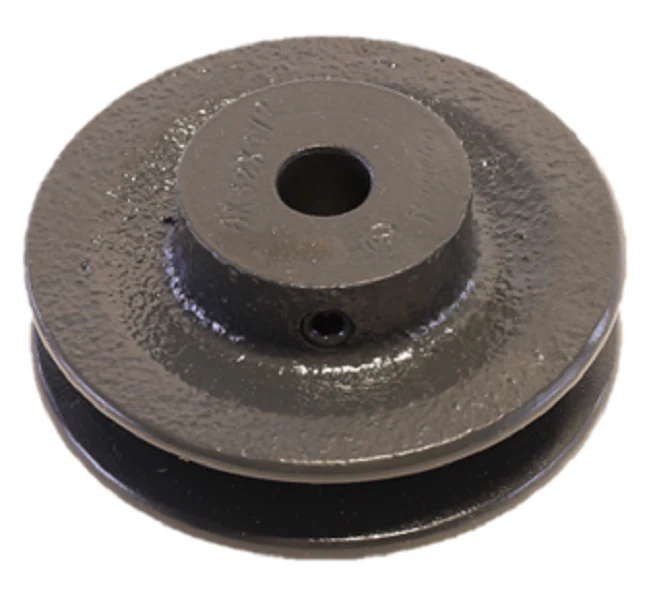

Browning AK32X1/2 Sheave
The Browning AK32X1/2 Sheave is a professional-grade cast iron V-belt pulley engineered for reliable power transmission in fractional horsepower HVACR applications. Constructed from high-quality close-grain cast iron, this single groove sheave is precision-machined to ensure tight tolerances and long-term durability in demanding air handling environments. Every unit is statically balanced at the factory to eliminate vibration, extending the service life of both the motor and the driven blower or fan assembly.
Designed for versatile field compatibility, this AK series sheave features a 1/2" finished bore with a standard keyway and setscrew for a secure fit on the motor shaft. With a 3.25" outside diameter, it is optimized for use with 3L, 4L, and A section belts (including AX notched profiles). Whether you are performing a routine maintenance swap or a full system overhaul, the Browning AK32X1/2 provides the mechanical consistency required to maintain proper belt tension and system efficiency.
Key Benefits
- Precision Machining: Crafted from fine-grain cast iron to provide a smooth belt seating surface and reduce premature belt wear.
- Vibration Control: Factory static balancing ensures quiet operation and protects motor bearings from harmonic stress.
- Universal Belt Compatibility: Engineered to work seamlessly with 3L, 4L, A, and AX V-belts for widespread application in residential and commercial units.
- Durable Coating: Industrial-grade paint finish resists corrosion and oxidation in high-moisture air handling units.
Common Questions
What is the pitch diameter for this sheave?
While the outside diameter is 3.25", the datum diameter varies based on the belt used; for an A-belt, the pitch diameter is approximately 3.0".
Can this sheave be used with notched belts?
Yes, the AK32X1/2 is fully compatible with AX notched belts, which are often used for better heat dissipation and flexibility on smaller diameters.
Does this require a separate bushing?
No, this is a fixed bore sheave with a 1/2" inner diameter, meaning it installs directly onto the shaft without the need for an H-bushing or QD-bushing.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
