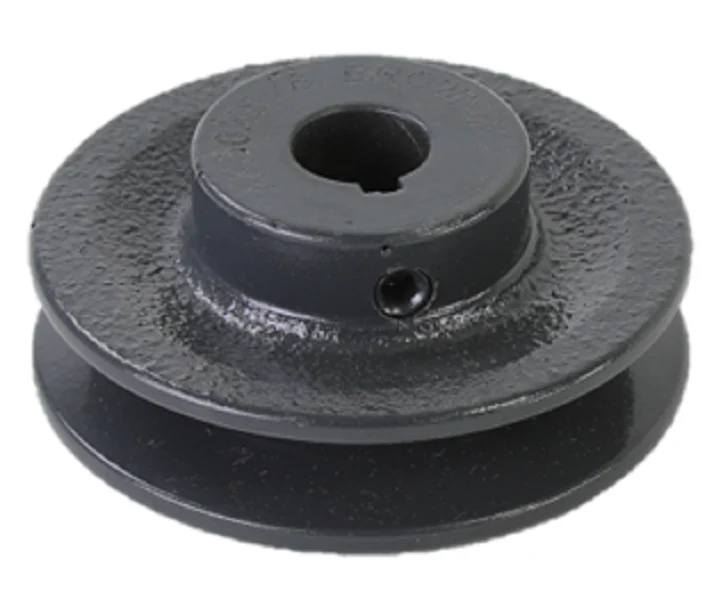

Browning AK30X5/8 Sheave
The Browning AK30X5/8 Sheave is a precision-engineered cast iron V-belt pulley designed for fractional horsepower applications in light-duty HVACR and industrial drive systems. Constructed from high-grade, close-grain cast iron, this single groove sheave is statically balanced to ensure vibration-free performance and extended bearing life. It features a 3.05" outside diameter and a 5/8" finished bore (fixed bore) equipped with a standard 3/16" x 3/32" keyway and setscrew for secure shaft integration.
Engineered for versatility, the AK30X5/8 is fully compatible with 3L, 4L, and A-section V-belts. Techs should note the datum diameter differences: 2.46" for 3L belts and 2.80" for A-section belts. This HVAC blower pulley is a reliable choice for fan motors and air handling units requires a fixed diameter sheave. It provides consistent torque transmission without the maintenance overhead of adjustable pitch alternatives. Please note: these sheaves should not be used with Gripnotch belt ratings on bores 1" and under.
Key Benefits:- Durable Cast Iron Construction: Machined from fine-grained cast iron for maximum wear resistance and dimensional stability.
- Statically Balanced: Factory balancing reduces system vibration, protecting motors and connected equipment.
- Multi-Belt Compatibility: Designed to fit 3L, 4L, and A-series belts, simplifying inventory for service contractors.
- Finished Bore Design: Includes a precision-machined 5/8" bore with keyway and setscrew for immediate installation.
- What is the difference between outside diameter and datum diameter for this sheave? The 3.05" outside diameter is the total width, while the datum diameter (2.46" for 3L / 2.80" for A) is used to calculate the actual drive ratio for your blower or motor setup.
- Can I use a notched belt with this pulley? Manufacturers advise against using "AK" sheaves with a 5/8" bore in conjunction with Gripnotch belt ratings.
- Is this sheave interchangeable with other brands? Yes, the AK30X5/8 is a standard fractional horsepower part and typically interchanges with Martin or TB Wood’s AK30 units with a 5/8" bore.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
