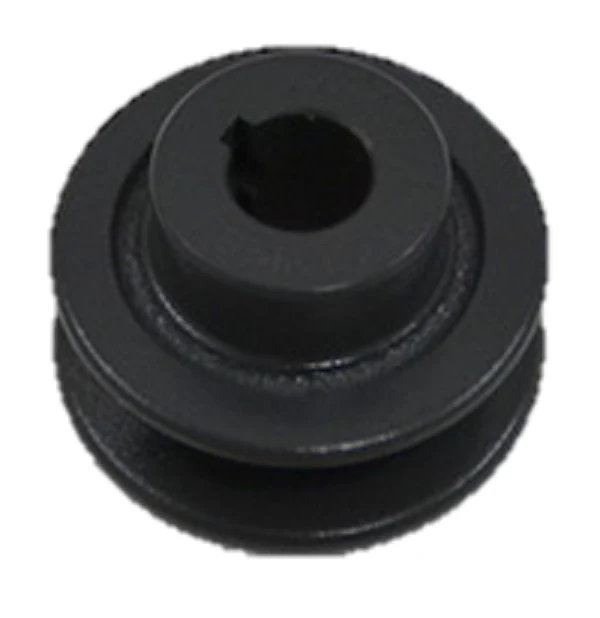

Browning AK26X3/4 Sheave
The Browning AK26X3/4 Sheave is a high-performance cast iron V-belt pulley designed for precision and durability in fractional horsepower (FHP) HVACR applications. Engineered with a 2.60" outside diameter and a 3/4" fixed bore, this single groove sheave is a standard-tier component for contractors requiring reliable power transmission. It is compatible with 3L, 4L, and A-section V-belts, utilizing a 2.06" datum diameter for 3L belts and a 2.40" datum diameter for A-section belts. Constructed from close-grain cast iron, each unit is statically balanced to ensure vibration-free rotation, which significantly reduces mechanical stress on fan motors and blower assemblies. The finished bore includes a standard 3/16" keyway and setscrew, providing a secure, no-slip fit on 3/4" shafts. Whether you are replacing a worn-out part or configuring a new drive system, this industrial V-belt sheave offers the machining tolerances necessary for maintaining consistent CFM and system efficiency in demanding commercial environments.
- Material Integrity: Manufactured from close-grain gray cast iron for superior wear resistance and heat dissipation compared to pressed steel alternatives.
- Vibration Reduction: Each sheave is statically balanced at the factory to minimize harmonic vibration, protecting motor bearings and extending service life.
- Broad Compatibility: Versatile fixed pitch sheave design works seamlessly with 3L, 4L, and A belts, allowing for flexibility in drive belt selection.
- Secure Mounting: Features a high-tolerance 3/4" finished bore with a precision-cut keyway for a tight, professional-grade installation.
Common Questions
What is the pitch diameter of the AK26?
The pitch diameter varies by belt type: it is approximately 2.06" for 3L belts and 2.40" for A/4L belts, ensuring proper speed ratios for your blower or pump.
Can I use this for high-horsepower industrial motors?
This is an AK series sheave specifically designed for fractional horsepower applications. For high-torque or multi-groove requirements, contact our team for BK or heavy-duty series alternatives.
Does this require a separate bushing for installation?
No, the AK26X3/4 is a fixed bore pulley, meaning it is machined to fit a 3/4" shaft directly without the need for additional bushings.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
