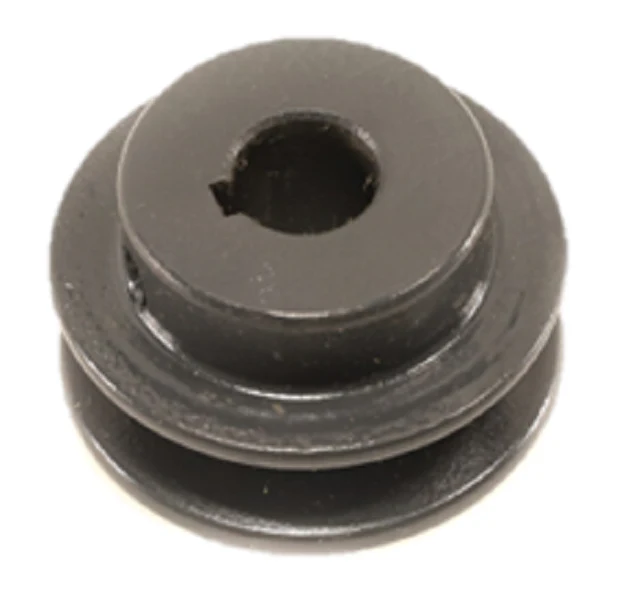

Browning AK22X5/8 Sheave
The Browning AK22X5/8 is a high-grade cast iron V-belt sheave engineered for fractional horsepower (FHP) applications, providing a rugged solution for HVAC blowers, fans, and light-duty industrial mechanical drives. This single-groove fixed bore pulley features a 2.20-inch outside diameter and is precision-machined from close-grain cast iron to ensure high tensile strength and minimal wear over extended duty cycles. Designed for direct shaft mounting, the 5/8-inch bore includes a standard keyway to deliver positive torque transmission without the need for additional bushings.
This AK series sheave is versatile, supporting 3L, 4L, and A-section classical V-belts. By utilizing statically balanced casting, Browning eliminates rotational vibration, which protects motor bearings and extends the operational life of the entire drive assembly. For technicians, this means a reliable, "set and forget" component that maintains precise belt tracking and consistent pitch diameters, even in high-demand furnace or air handling environments.
Key Benefits for the Contractor:- Universal Compatibility: Seamlessly integrates with 3L, 4L, and A V-belts, allowing for standardizing truck stock for various FHP drive repairs.
- Superior Balance: Each unit is statically balanced to prevent systemic vibration, reducing noise and mechanical fatigue in HVAC systems.
- Durable Construction: The close-grain cast iron build resists warping and provides excellent heat dissipation compared to stamped steel or aluminum alternatives.
- Direct Fit: The 5/8" fixed bore with machined keyway allows for fast installation on standard motor shafts without secondary hardware.
- What is the datum diameter for this sheave? For A-section belts, the datum diameter is approximately 2.00 inches, while for 3L belts, it is approximately 1.66 inches.
- Can I use this for high-speed blower applications? Yes, this cast iron sheave is rated for industrial speeds (up to 11,280 RPM depending on system balance) typically found in commercial HVAC blowers.
- Does this requirement a separate bushing? No, the AK22X5/8 is a finished, fixed-bore sheave designed for immediate mounting to a 5/8" shaft.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
