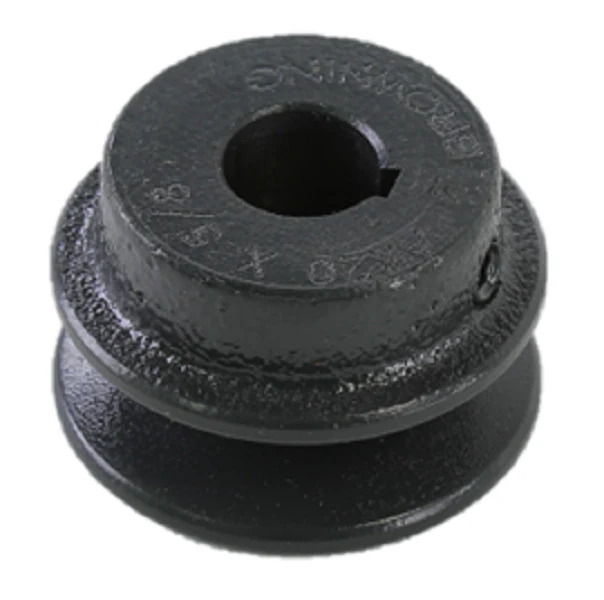

Browning AK20X5/8 Sheave
The Browning AK20X5/8 is a professional-grade, 2.00-inch outside diameter single groove sheave specifically engineered for fractional horsepower (FHP) applications. This cast iron V-belt pulley features a 5/8-inch finished bore with a standard 3/16-inch (0.1875 in) keyway, eliminating the need for additional bushings during installation. Designed for high-performance HVAC systems and industrial machinery, this component supports 3L, 4L, and A section belts. Each unit is precision-machined from close-grain cast iron and arrives static balanced to minimize vibration and extend the service life of both the motor and the belt. With a datum diameter of 1.46 inches for 3L belts and 1.80 inches for A belts, this sheave ensures precise power transmission efficiency and consistent alignment for contractors and maintenance technicians.
Key Benefits of the Browning AK20X5/8
- Finished Bore Design: Accurate 5/8-inch bore with keyway and setscrew allows for immediate shaft mounting without supplemental hardware.
- Universal Compatibility: Versatile V-belt pulley groove profile fits 3L, 4L (A), and A section belts, providing flexibility for diverse drive requirements.
- Enhanced Durability: Rugged cast iron construction offers superior wear resistance compared to stamped steel or aluminum alternatives.
- Vibration Control: Static balancing reduces harmonic noise and prevents premature bearing failure in high-speed applications.
- Compact Profile: A 0.6563-inch face width and 1.0938-inch overall width allow for installation in tight equipment housings.
Frequently Asked Questions
Does this sheave require a separate bushing?
No, the Browning AK20X5/8 is a finished bore sheave, meaning it is machined to a specific 5/8-inch diameter and is ready to be installed directly onto the motor or drive shaft.
Which belt types can I use with this pulley?
This model is designed for FHP V-belts, including 3L, 4L, and standard A section belts. Always verify your specific belt section to ensure proper seating in the groove.
What is the purpose of the static balancing?
Static balancing ensures that the mass is evenly distributed around the axis of rotation. For technicians, this means smoother operation, quieter HVAC blowers, and reduced stress on the power transmission system.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
