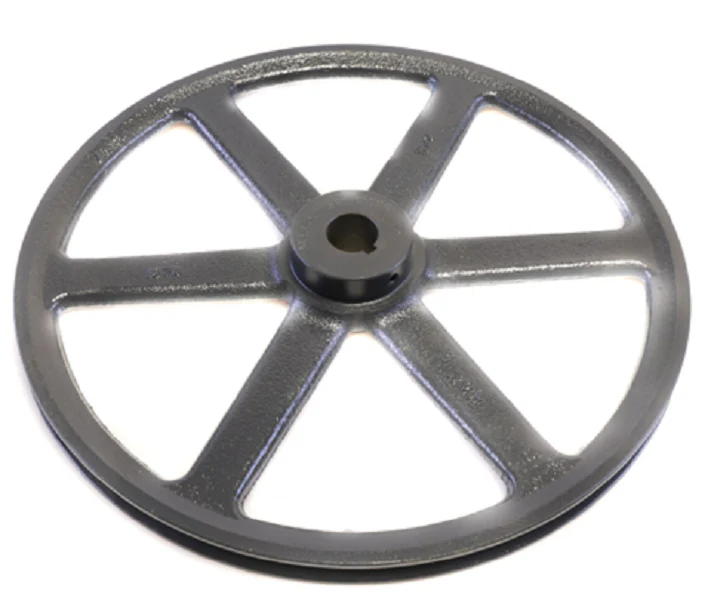

Browning AK134X1 Sheave
The Browning AK134X1 Sheave is a precision-machined, cast iron pulley designed for high-duty cycle HVACR blower motor and fan applications. This single groove sheave features a 13.25" outside diameter and a 1-inch fixed bore with a standard keyway and setscrew for secure shaft attachment. Engineered for versatile power transmission, it is compatible with 3L, 4L, and A section belts. The high-grade gray cast iron construction provides superior vibration dampening and heat dissipation compared to stamped steel alternatives, ensuring stable pitch diameter performance under constant load. This Browning AK sheave is dynamically balanced to reduce bearing wear and maintain static pressure requirements in light-duty commercial air handlers. Whether you are performing a field replacement or optimizing a belt drive system, the AK134X1 offers the concentricity and dimensional accuracy required to prevent premature V-belt fatigue and ensure efficient energy transfer across the drivetrain.
Key Benefits
- Cast Iron Durability: High-tensile strength material resists wear and maintains groove integrity better than lightweight alloys.
- Precision Machined Bore: The 1" fixed bore is finished to tight tolerances for a precise fit on standard electric motor shafts.
- Universal Belt Compatibility: Optimized groove geometry supports 3L, 4L, and A belts, providing flexibility for various drive configurations.
- Vibration Reduction: The mass of the cast iron construction helps dampen harmonic resonance in high-static fan assemblies.
Common Questions
What is the datum diameter for the Browning AK134X1?
The datum diameter varies by belt type: it is 12.60" for A belts and 13.00" for 4L belts, which is critical for calculating precise RPM ratios.
Can this sheave be used with 5L or B section belts?
No, the groove profile is specifically designed for 3L, 4L, and A belts. Using wider 5L or B belts will result in improper seating and rapid belt failure.
Is this sheave balanced for high-speed applications?
Browning AK sheaves are statically balanced; for extremely high-RPM industrial applications, ensure your total assembly balance meets local mechanical codes.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
