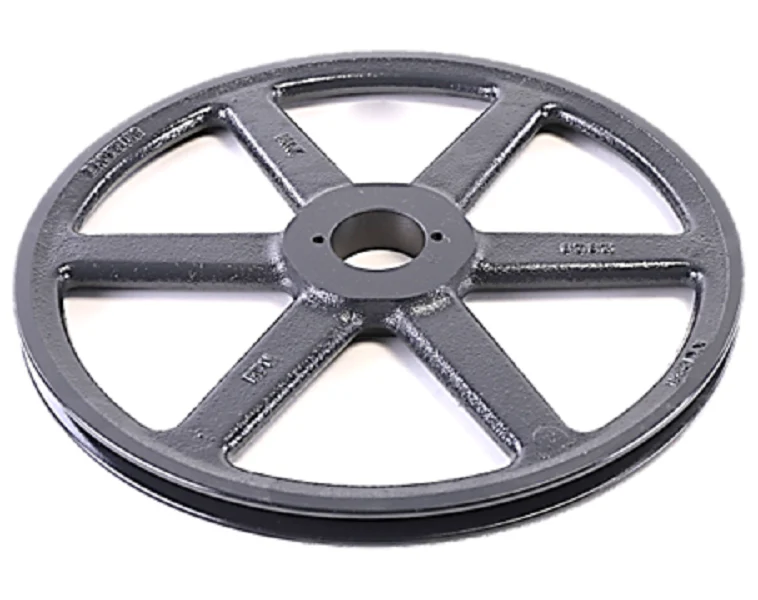

Browning AK124H Sheave
The Browning AK124H Sheave is a high-performance, single-groove cast iron pulley engineered for demanding HVACR and industrial applications. This bushed sheave features a 12.25" outside diameter and is designed specifically for use with H series split taper bushings, ensuring a secure, concentric fit on the shaft that minimizes vibration. Constructed from close-grain cast iron, the AK124H is precision-machined to exacting tolerances and statically balanced to maintain drive stability and extend the service life of associated bearings. Optimized for fractional horsepower (FHP) drives, this versatile component is compatible with 3L, 4L, and A belt sections, providing reliable power transmission for centrifugal fans, blowers, and air handling units. Its robust build and fixed pitch design make it a standard choice for contractors requiring a durable, balanced solution for medium-to-large diameter drive ratios in commercial climate control systems.
Key Benefits
- Precision Machined: Constructed from high-quality close-grain cast iron for superior wear resistance and dimensional stability.
- Vibration Control: Statically balanced at the factory to ensure smooth operation and reduced mechanical stress on the motor.
- Bushing Compatibility: Utilizes the H series bushing system, allowing for flexible bore sizes (ranging from 3/8" to 1-1/2") and easy installation.
- Versatile Belt Support: Engineered to standard A, 3L, and 4L v-belt profiles for broad compatibility across HVACR equipment.
Common Questions
What is the difference between AK and AKH sheaves?
Standard AK sheaves are finished bore with a set screw, while the AKH series, like the Browning AK124H, is designed for a split taper bushing to provide a tighter, more reliable grip on the shaft.
Does this sheave include the H-bushing?
No, the H series bushing is sold separately. This allows you to select the specific bore diameter required for your motor or fan shaft.
Can I use an A-section belt with this pulley?
Yes, the Browning AK124H is fully compatible with A section v-belts as well as 4L and 3L fractional horsepower belts.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
