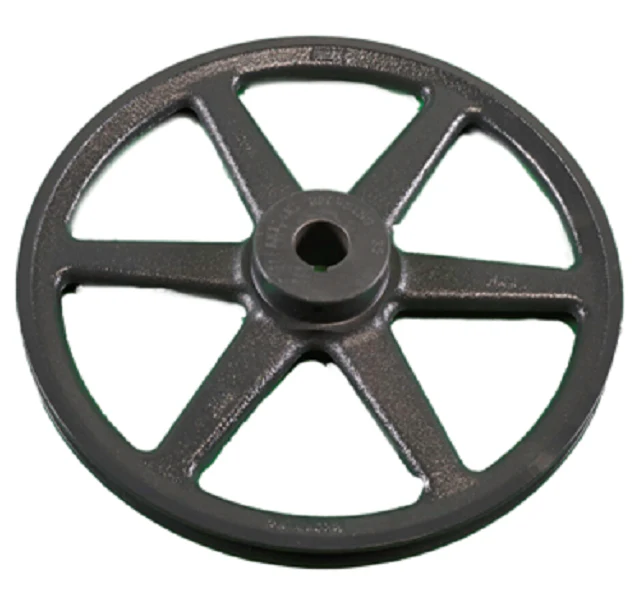

Browning AK114X1 Sheave
The Browning AK114X1 Sheave is a precision-engineered single groove cast iron pulley designed for high-duty cycle HVACR applications and industrial power transmission. Featuring an 11.25" outside diameter and a 1" fixed bore with standard keyseat and setscrew, this AK series sheave is built for durability and heat dissipation. It is compatible with 3L, 4L, and A section V-belts, allowing for versatile torque transfer in air handling units or fan drives. The high-grade cast iron construction ensures dimensional stability and vibration dampening, crucial for maintaining HVAC drive alignment and reducing bearing wear on the motor or driven shaft. For technicians managing fixed bore V-belt pulleys, this component provides a reliable power transmission solution that withstands the rigors of continuous operation without the deformation often seen in stamped steel alternatives. Ensure correct pitch diameter calculations based on your specific belt series for optimal RPM output.
Key Benefits- Precision Machined Casting: High-grade cast iron provides superior durability and vibration dampening compared to lighter-duty pulleys.
- Broad Belt Compatibility: Designed to work seamlessly with 3L, 4L, and A-style belts for maximum site flexibility.
- Fixed Bore Stability: The 1-inch bore includes a standard keyway and setscrew for a secure, non-slip fit on the shaft.
- Enhanced Heat Dissipation: Robust material construction helps pull heat away from the belt, extending the service life of the drive package.
What is the difference between the outside diameter and the pitch diameter for this sheave?
While the Browning AK114X1 has an 11.25" outside diameter (O.D.), the pitch diameter—the actual point where the belt seats for speed calculations—varies by belt type: it is 10.6" for A belts and 11.0" for 4L belts.
Can I use this sheave with BX or notched belts?
Yes, this sheave is compatible with AX and BX cogged belts, which can offer higher efficiency in small-diameter applications, though ensure alignment is precise to prevent premature wear.
Is a keyway included with the 1" fixed bore?
Yes, this fixed bore sheave comes machined with a standard keyseat and includes a setscrew to secure the sheave to the motor or blower shaft.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
