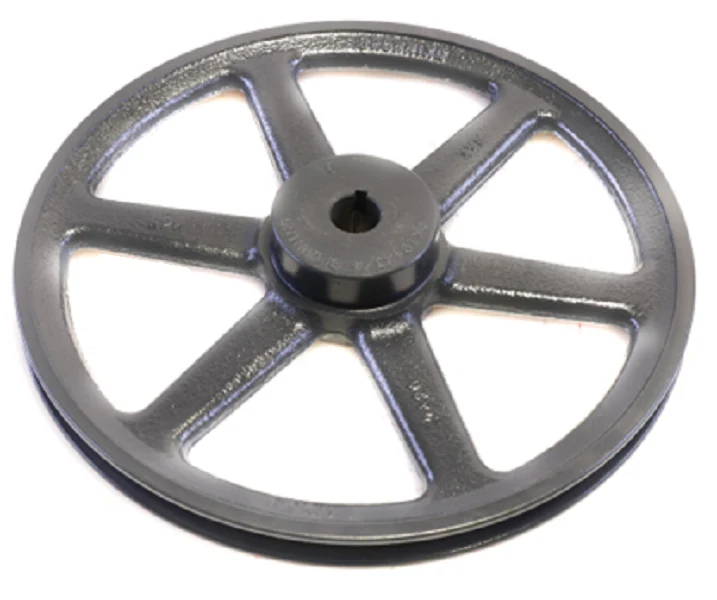

Browning AK104X3/4 Sheave
The Browning AK104X3/4 Sheave is a precision-machined, light-duty single groove cast iron pulley designed for consistent power transmission in HVACR blower assemblies and fan drives. Engineered for compatibility with 3L, 4L, and A section belts, this 10.25-inch outside diameter sheave provides reliable speed reduction and torque transfer for residential and commercial air handling units. The 3/4 inch fixed bore features a standard keyway and setscrew, ensuring a secure fit on motor shafts and reducing the risk of vibration-induced failure. Constructed from high-quality Grade 35 cast iron, the Browning AK104 is statically balanced to maintain drive integrity under continuous load. Technicians specify this A-section belt sheave for its durability compared to stamped steel alternatives, particularly in applications requiring a large pitch diameter to manage belt tension and reduce surface wear. This HVAC drive component ensures concentric rotation and a long service life for heavy-duty fan motors.
Key Benefits
- Precision Machined Construction: Durable Grade 35 cast iron ensures superior wear resistance and heat dissipation over stamped steel pulleys.
- Versatile Belt Compatibility: Engineered to accept 3L, 4L, and A belts, providing flexibility for various drive configurations and maintenance replacements.
- Optimized Drive Performance: The 10.25" OD provides a large contact surface area, minimizing belt slippage and maximizing mechanical advantage.
- Fixed Bore Stability: The 3/4" fixed bore includes a precision-cut keyway and setscrew for a rigid connection to the driveshaft.
- Improved System Life: Statically balanced design reduces radial vibration, protecting motor bearings and extending the lifecycle of the blower assembly.
Common Questions
What is the difference between an AK sheave and a standard pulley?
An AK sheave like the Browning AK104X3/4 is specifically designed for light-to-medium duty HVAC applications, featuring a precision-grooved profile for A-section V-belts and cast iron construction for better balance than generic utility pulleys.
Can I use an AX cogged belt with this sheave?
Yes, the Browning AK104 is compatible with both A belts (wrapped) and AX belts (cogged), provided the belt top width matches the 1/2" groove specification.
What is the maximum RPM for this cast iron sheave?
Standard Browning AK sheaves are generally rated for up to 6,500 FPM (feet per minute) rim speed, but always verify the specific motor RPM and pitch diameter limits to ensure operating within safe limits for cast iron pulleys.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
