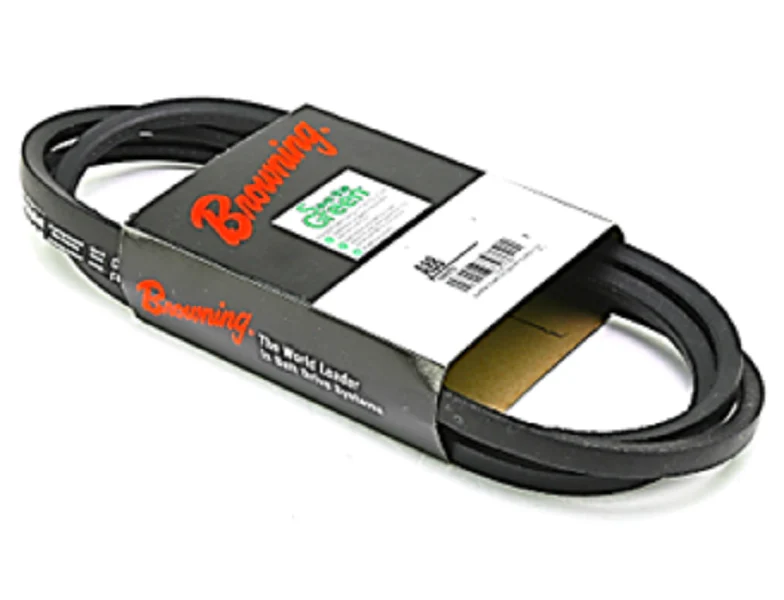

Browning A88 Belt
The Browning A88 Belt is a heavy-duty classical V-belt engineered for consistent power transmission in commercial HVACR systems. Specifically designed as an A-section wrapped belt, it features a 1/2-inch top width and a 5/16-inch thickness, making it the industry standard for centrifugal fans, blowers, and pump drives. With a 90.2" outside diameter and an 89.3-inch pitch length, this Super Gripbelt utilizes high-tensile synthetic fiber cords to prevent elongation under peak torque loads, ensuring high-efficiency energy transfer without the need for frequent re-tensioning.
For contractors managing multi-belt drives, the Browning A88 utilizes the Code 1 match system. This proprietary manufacturing tolerance ensures that every A88 belt can be installed as a matched set directly off the shelf, meeting or exceeding RMA standards for length consistency. The neoprene-wrapped construction provides a smooth, quiet interface with v-belt sheaves, offering superior resistance to oil, heat, and ozone. Whether you are performing a preventative maintenance swap on an air handler or replacing a failed drive on a compressor, the durable single-fabric cover is built to withstand the rigorous 140°F environments common in rooftop units.
Key Benefits:
- Code 1 Matching: Eliminates the need for specific matching numbers, allowing for easy installation of multiple A-section belts on a single drive.
- Enhanced Torque Capacity: Reinforced synthetic tensile cords minimize stretch and maximize uptime for industrial power transmission.
- Oil and Heat Resistance: Neoprene-wrapped construction protects the core from premature degradation in harsh mechanical rooms.
- Misalignment Tolerance: The wrapped cover design is more forgiving of slight pulley misalignment compared to raw-edge cogged belts.
Common Questions:
- Can I use an A88 in place of a 4L section belt? No. While they share a 1/2" top width, the A88 is an industrial-grade belt rated for significantly higher horsepower and longer service life than light-duty FHP 4L belts.
- How do I stop this belt from squealing on startup? Squealing is usually a sign of low tension or worn v-belt sheaves. Check the pitch length and use a tension checker to meet manufacturer specs.
- Will this belt fit my existing pulleys? This is a standard A-section classical belt designed for all standard A-groove or combination A/B sheaves.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
