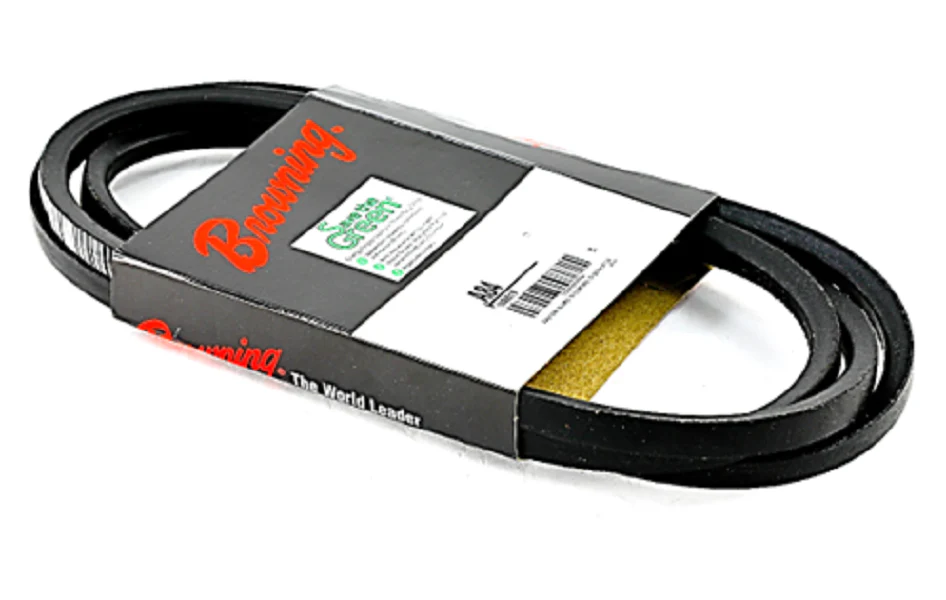

Browning A84 Belt
The Browning A84 Belt is a heavy-duty, classical A-section wrapped V-belt engineered for those of us working with high-demand HVAC blower motors and industrial fan drives. This 86.2" outside diameter Super Gripbelt features a 1/2-inch top width and a 5/16-inch thickness, conforming to strict RMA static conductivity and oil-resistance standards. Built with a high-torque neoprene construction and reinforced with high-tensile synthetic fiber cords, the A84 maintains its 85.3-inch pitch length even under significant thermal stress, with an operating threshold up to 140°F. The single-layer fabric wrap provides superior flexibility, allowing the belt to track smoothly on A-section pulleys while offering higher slip tolerance than standard raw-edge belts. This ensures the Browning A84 delivers consistent 95% efficiency in power transmission, minimizing vibration and extending the service life of your drive system bearings in commercial air handling units.
Key Benefits- Code 1 Match System: Ensures tight manufacturing tolerances for easy selection of matched belt sets used in multi-groove sheaves.
- Enhanced Flexibility: The wrapped construction and synthetic fiber core allow for reliable performance on smaller diameter pulleys without premature cracking.
- Superior Grip: Engineered for high-torque HVAC applications, providing a more reliable grip than standard belts during startup and heavy load cycles.
- Contaminant Resistance: Specially treated fabric cover protects the internal tensile cords from oil, dust, and environmental debris common in mechanical rooms.
Is the Browning A84 compatible with standard A-section sheaves?
Yes, this is a classical A-section belt designed specifically for standard 1/2-inch top width pulleys and is commonly used in industrial and HVAC drive replacements.
Does this belt require a break-in period?
While the Browning A84 V-Belt is designed for immediate service, we recommend checking tension after the first 24-48 hours of run-time to account for initial seating in the pulley grooves.
What is the difference between the outside diameter and pitch length?
The 86.2-inch outside diameter measures the total exterior circumference, while the 85.3-inch pitch length represents the neutral axis where the tensile cords reside, which is the critical dimension for drive ratio calculations.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
