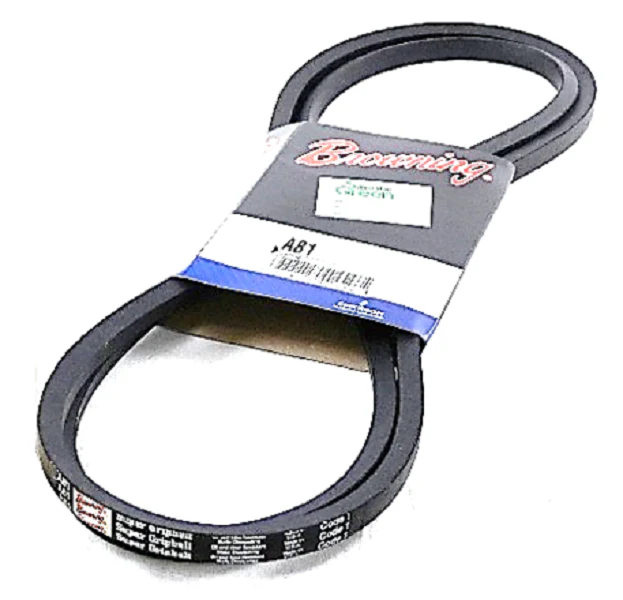

Browning A81 Belt
When you are looking for a reliable drive solution, the Browning A81 Belt stands out as a high-performance classical V-belt engineered for the rigors of industrial and HVACR applications. This Type A Super Gripbelt features a 83.2-inch outside diameter and a 82.3-inch pitch length, designed to fit standard A-section sheaves with a 1/2-inch top width and 5/16-inch thickness. Constructed from heat and oil-resistant neoprene rubber, it utilizes high-tensile synthetic cords to prevent elongation and handle high-torque start-ups without failure. The wrapped construction ensures a smooth, quiet operation while providing superior tolerance to slipping and minor misalignment compared to raw-edge alternatives. By following the Browning Code 1 Match belt system, you can ensure that multiple belts used in a single drive share the same dimensional tolerances, optimizing load distribution across the entire assembly.
- Precise Power Transmission: Features a 95% efficiency rating for minimal energy loss in commercial air handlers and compressors.
- Code 1 Matching: Simplifies the selection process for multi-belt drives, ensuring unified length tolerances within RMA standards.
- Durable Neoprene Body: Provides natural resistance to oil, ozone, and ambient heat, maintaining structural integrity up to 140°F.
- Wrapped Construction: Reduces vibration and noise levels while protecting internal tensile members from debris.
- High Flexibility: The single-fabric design allows the belt to operate efficiently even on smaller diameter pulleys.
Common Questions
What is the difference between outside length and pitch length for this belt?
The Browning A81 has a nominal outside diameter of 83.2 inches, while the pitch length (the neutral axis where the cord sits) is 82.3 inches. Always use the pitch length for precise center-distance calculations.
Can I use an A81 in a multi-belt drive if they aren't all Browning brand?
For optimal performance and to avoid uneven tension, it is recommended to use matched sets. The Browning Code 1 Match system ensures that any A81 from their stock will match others, which is difficult to guarantee when mixing different manufacturers.
Is this belt suitable for outdoor rooftop units?
Yes, the neoprene and synthetic fiber construction is designed to withstand UV exposure and temperature fluctuations commonly found in outdoor HVACR equipment.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
