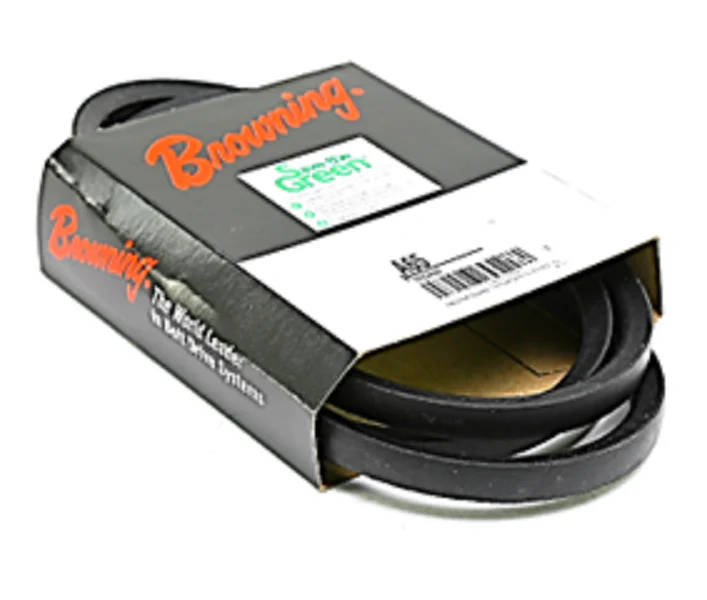

Browning A65 Belt
The Browning A65 Super Gripbelt is a heavy-duty, classical wrapped V-belt engineered for high-performance HVACR and industrial drive systems. Built with a 67.2" outside diameter and a 66.3" pitch length, this Type A belt features a standard 1/2" top width and 5/16" thickness, making it a drop-in replacement for standard A-section pulleys. The neoprene body and wrapped fabric construction provide excellent resistance to oil, heat, and environmental wear, while ensuring smooth, quiet operation in air handling units, fans, and blowers. By utilizing high-tensile synthetic cord reinforcement, the Browning A65 maintains exceptional dimensional stability and resists stretching under heavy startup loads. This "Code 1" match belt system ensures tighter tolerances than RMA standards, allowing for easy multiple-belt drive configurations without specialized matching. For technicians, this means increased torque capacity, reduced vibration, and superior tolerance to minor sheave misalignment.
- Universal Compatibility: Standard A-section V-belt profile fits most industrial sheaves.
- High Efficiency: Neoprene wrapped design provides up to 95% efficiency for better power transmission.
- Industrial Durability: Heat and oil resistant construction handles ambient temperatures from -35°F to +140°F.
- Quiet Operation: Fabric wrap reduces friction noise and vibration in sensitive air handling applications.
- Stretch Resistance: High-tensile cords minimize the need for frequent re-tensioning after installation.
Common Questions
What is the difference between an A65 and a 4L650 belt?
While both have similar widths, the Browning A65 is a classical industrial belt designed for higher horsepower and a longer life cycle (up to 25,000 hours) compared to 4L fractional horsepower belts, which are typically rated for lighter duty and shorter lifespans.
Can this belt be used in multi-groove pulleys?
Yes. Browning’s Code 1 match system ensures that all A65 belts fall within the same tight tolerance range, allowing you to install multiple belts on a single drive without worrying about uneven load distribution.
Is this belt static conducting?
Yes, all Browning classical Super Gripbelts are designed to be static conducting, making them safe for use in environments where static discharge must be mitigated.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
