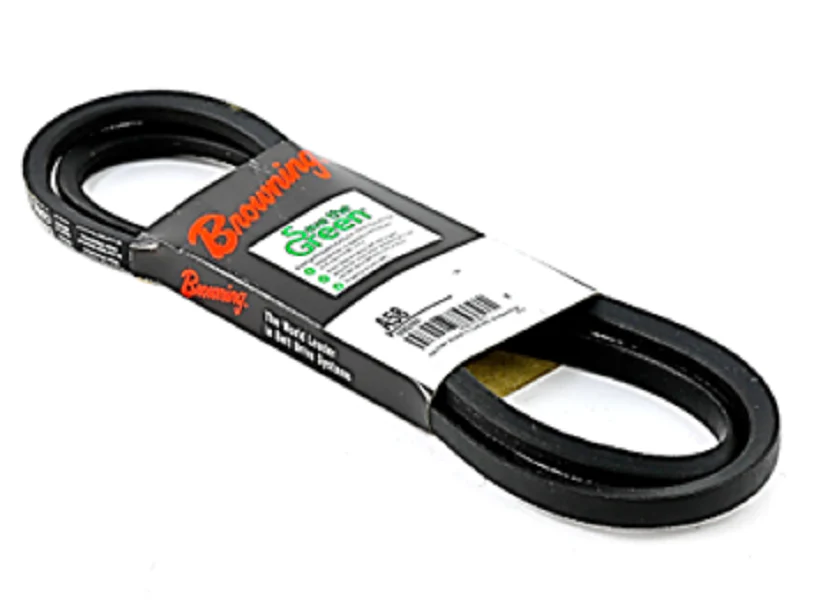

Browning A58 Belt
The Browning A58 Gripbelt is a heavy-duty, classical A-section wrapped V-belt engineered specifically for continuous-duty HVACR applications and industrial mechanical drives. With a 60.2-inch outside diameter and a 59.3-inch pitch length, this component provides reliable power transmission for air handlers, blowers, and centrifugal pumps. The belt features a standard 1/2-inch top width and 5/16-inch thickness, adhering to RMA standards for dimensional consistency. Its wrapped construction utilizes a single fabric jacket that improves flexibility while allowing for greater tolerance to moderate pulley misalignment compared to raw-edge alternatives. To assist with maintenance efficiency, this belt is part of the Code 1 Match system, ensuring that all belts of the same size meet tight matching tolerances for multi-groove drive synchronization. Constructed with a neoprene body and high-tensile synthetic fiber cords, it resists elongation and maintains structural integrity in high-torque environments without slipping.
Key Benefits for HVACR Service- Enhanced Flexibility: The wrapped fabric design allows the belt to operate smoothly over smaller sheave diameters with reduced vibration.
- Code 1 Match System: Simplifies inventory and installation by ensuring any two A58 belts can be used together in matched sets without extra measuring.
- High-Tensile Reinforcement: Specially treated synthetic cords minimize the need for frequent belt tensioning and prevent stretching under load.
- Contaminant Resistance: The neoprene compound is designed to withstand heat, oil, and ozone exposure common in mechanical rooms.
Is the Browning A58 compatible with standard A-section sheaves?
Yes, it is designed for all standard classical V-belt sheaves. For optimal efficiency, always inspect your sheave grooves for wear before installation to prevent premature belt failure.
How do I verify if I need an A58 or an AX58?
The A58 is a wrapped belt ideal for clutching and misalignment tolerance, whereas the AX58 is a cogged (notched) belt designed for higher heat dissipation and energy efficiency on very small pulleys. Most standard HVAC blowers utilize the A58.
Can I use this belt in multi-belt drives?
Absolutely. Because it meets Browning Code 1 specifications, it ensures uniform load distribution across all belts in a multi-groove drive system.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
