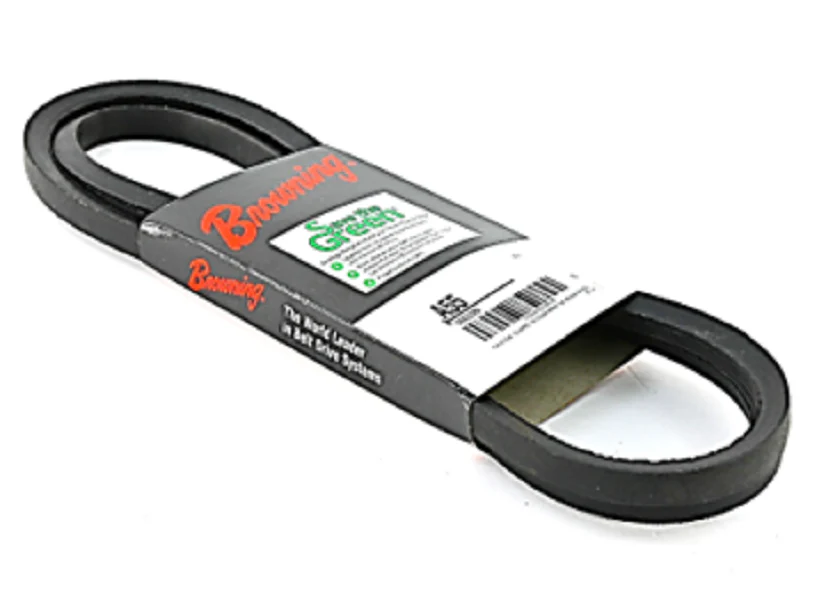

Browning A55 Belt
The Browning A55 Belt is a heavy-duty wrapped V-belt engineered for consistent power transmission in HVAC blower motors and industrial fan drives. Featuring a 57.2-inch outside diameter and a standard A Section width, this Super Gripbelt is constructed with a multi-layered fabric wrap that provides superior resistance to oil, heat, and ozone. The internal tension members are heat-treated to minimize stretch, ensuring that pulleys remain aligned under high torque loads. Designed for compatibility with standard AK and BK sheaves, the A55 profile maintains an industry-standard 1/2-inch top width and 5/16-inch thickness. This belt is ideal for technicians looking to replace worn fractional horsepower belts in commercial air handlers where slip resistance and vibration dampening are critical for system longevity. The wrapped construction allows for momentary overload protection without shredding, making it a reliable choice for high-duty cycle applications across the mechanical room.
Key Benefits for HVACR Applications
- High-tensile synthetic cords carry the load while resisting fatigue and elongation during startup.
- Wrapped fabric cover reduces friction heat and allows for smooth clutching in cycling applications.
- Static conductive properties ensure safe operation in sensitive industrial environments.
- Global interchangeability with any standard 4L570 or A55 V-belt cross-reference.
- Standard A-profile geometry ensures maximum contact with sheave grooves for optimized mechanical efficiency.
Common Installation Questions
What is the difference between an A55 and a 4L570 belt?
While both share a nominal length, the Browning A55 is a heavy-duty industrial belt designed for higher horsepower ratings and harsher environments compared to standard light-duty FHP belts.
Can the A55 Super Gripbelt be used on back-side idlers?
Yes, the wrapped cover construction is designed to handle the stress of backside idler pulleys often found in complex air handling unit drive configurations.
How do I verify the correct tension for an A55 belt?
Proper tension should be set using a deflection gauge; typically, an A Section belt requires 1/64" of deflection per inch of span length to prevent premature sheave wear and bearing failure.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
