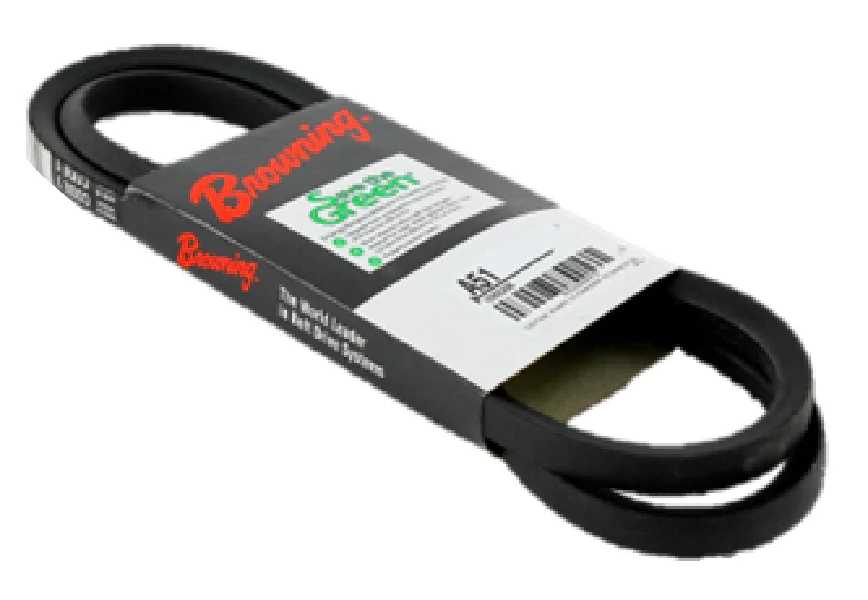

Browning A51 Belt
The Browning A51 Super Gripbelt is a heavy-duty Type A V-Belt designed for high-performance power transmission in industrial and HVAC applications. Constructed with neoprene-wrapped synthetic rubber, this 53.2" outside diameter belt provides superior resistance to heat, oil, and environmental degradation. The internal high-tensile synthetic fiber cords are engineered to minimize elongation, ensuring consistent tension and reducing the need for frequent re-tensioning in the field. As a Code 1 Match belt, the A51 meets or exceeds RMA standards, allowing for seamless integration in multiple-belt drives without the risk of uneven load distribution. The wrapped profile is specifically designed to handle minor misalignment and offer better slip tolerance than raw-edge alternatives, resulting in quieter operation for centrifugal fans, pumps, and air handling units.
Key Benefits for HVACR Applications
- Enhanced Durability: The wrapped neoprene construction protects the internal tensile members from abrasion and debris.
- Precise Length Matching: Browning Code 1 tolerances ensure any two A51 belts will match, simplifying inventory and installation.
- High Strength-to-Weight Ratio: Synthetic fiber cords provide the structural integrity required for high-torque 1/2" top width pulley systems.
- Reduced Maintenance: Engineered for minimal stretch, significantly decreasing downtime associated with belt slip and vibration.
- Wide Compatibility: Standard A-section dimensions (5/16" thickness) make this a direct replacement for most industrial power transmission drives.
Common Technical Questions
What is the difference between the pitch length and outside length for this belt?
The Browning A51 features a nominal 53-inch length with a 53.2-inch outside diameter (OD) and a 52.3-inch pitch length. Technicians should use the pitch length for precise center-distance calculations in drive design.
Can this belt be used on small diameter sheaves?
Yes, the A-section wrapped belt is highly flexible, though for extremely small sheaves or modern high-speed compact drives, a notched (AX) belt may be considered to reduce bending stress. However, the A51 remains the standard for reliability in traditional HVAC blowers.
Is the A51 oil and heat resistant?
The neoprene wrap provides standard industrial resistance to oils and is designed to operate efficiently in typical mechanical room environments without premature hardening or cracking.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
