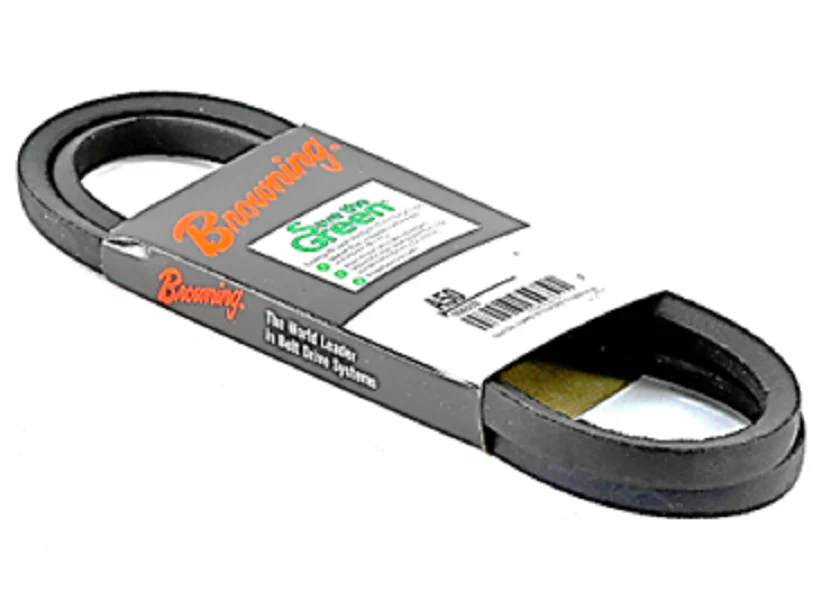

Browning A50 Belt
The Browning A50 is an industrial-grade Type A Super Grip Belt engineered for high-demand HVACR and mechanical power transmission applications. Featuring a 52.2" outside diameter and a 51.3" pitch length, this wrapped V-belt is designed for maximum efficiency in short center drives. Its heavy-duty neoprene construction provides essential oil and heat resistance, meeting RMA and MPTA IP-20 standards for static conductivity and performance in harsh environments. As a veteran-preferred part, the A50 utilizes a single fabric design that reduces overlap and vibration, allowing it to operate smoothly on smaller diameter sheaves without the risk of premature fatigue or slippage.
For contractors managing multi-belt systems, this Browning V-belt features the proprietary Code 1 match tolerance. This ensures that every A50 belt of the same size is manufactured within exceptionally tight tolerances, allowing for a matched set without the need for manual numbering or sorting. The high-tensile synthetic fiber cords are specially treated to resist elongation and maintain proper belt tension over extended service cycles. Whether you are servicing a centrifugal pump, air handler, or cooling tower, the A50 provides the horsepower capacity and flexibility required for reliability in the field.
Key Benefits:
- Code 1 Match System: Guarantees uniform length across multiple belts for balanced load distribution and reduced bearing wear.
- Optimized Flex Life: The single fabric wrap design increases flexibility, permitting the use of smaller sheaves without sacrificing transmission efficiency.
- Environmental Resistance: Neoprene compound is rated for operating temperatures up to 140°F and provides resistance to oil, heat, and static buildup.
- Reduced Maintenance: Specially treated high-tensile cords minimize stretching, reducing the frequency of take-ups and downtime.
Common Questions:
What is the difference between the A50 outside diameter and pitch length?
The Browning A50 has a 52.2" outside diameter, but the pitch length (the neutral axis where the belt maintains its length under tension) is 51.3". It is critical to use the pitch length when calculating center distances and sheave compatibility for HVACR blowers and motors.
Can the A50 be used in matched sets?
Yes. Because this is a Gripbelt with Code 1 matching, any two A50 belts will match within RMA tolerances. This eliminates the headache of hunting for specific "match numbers" when replacing belts on a multi-groove drive.
Is this belt suitable for oily or hot environments?
Absolutely. The neoprene cover and internal components are specifically engineered to maintain structural integrity in presence of oil mist and ambient temperatures up to 140°F, which is standard for most industrial HVAC applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $14.90
-65%$14.90
$5.21Browning A50 Belt
The Browning A50 is an industrial-grade Type A Super Grip Belt engineered for high-demand HVACR and mechanical power transmission applications. Featuring a 52.2" outside diameter and a 51.3" pitch length, this wrapped V-belt is designed for maximum efficiency in short center drives. Its heavy-duty neoprene construction provides essential oil and heat resistance, meeting RMA and MPTA IP-20 standards for static conductivity and performance in harsh environments. As a veteran-preferred part, the A50 utilizes a single fabric design that reduces overlap and vibration, allowing it to operate smoothly on smaller diameter sheaves without the risk of premature fatigue or slippage.
For contractors managing multi-belt systems, this Browning V-belt features the proprietary Code 1 match tolerance. This ensures that every A50 belt of the same size is manufactured within exceptionally tight tolerances, allowing for a matched set without the need for manual numbering or sorting. The high-tensile synthetic fiber cords are specially treated to resist elongation and maintain proper belt tension over extended service cycles. Whether you are servicing a centrifugal pump, air handler, or cooling tower, the A50 provides the horsepower capacity and flexibility required for reliability in the field.
Key Benefits:
- Code 1 Match System: Guarantees uniform length across multiple belts for balanced load distribution and reduced bearing wear.
- Optimized Flex Life: The single fabric wrap design increases flexibility, permitting the use of smaller sheaves without sacrificing transmission efficiency.
- Environmental Resistance: Neoprene compound is rated for operating temperatures up to 140°F and provides resistance to oil, heat, and static buildup.
- Reduced Maintenance: Specially treated high-tensile cords minimize stretching, reducing the frequency of take-ups and downtime.
Common Questions:
What is the difference between the A50 outside diameter and pitch length?
The Browning A50 has a 52.2" outside diameter, but the pitch length (the neutral axis where the belt maintains its length under tension) is 51.3". It is critical to use the pitch length when calculating center distances and sheave compatibility for HVACR blowers and motors.
Can the A50 be used in matched sets?
Yes. Because this is a Gripbelt with Code 1 matching, any two A50 belts will match within RMA tolerances. This eliminates the headache of hunting for specific "match numbers" when replacing belts on a multi-groove drive.
Is this belt suitable for oily or hot environments?
Absolutely. The neoprene cover and internal components are specifically engineered to maintain structural integrity in presence of oil mist and ambient temperatures up to 140°F, which is standard for most industrial HVAC applications.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
