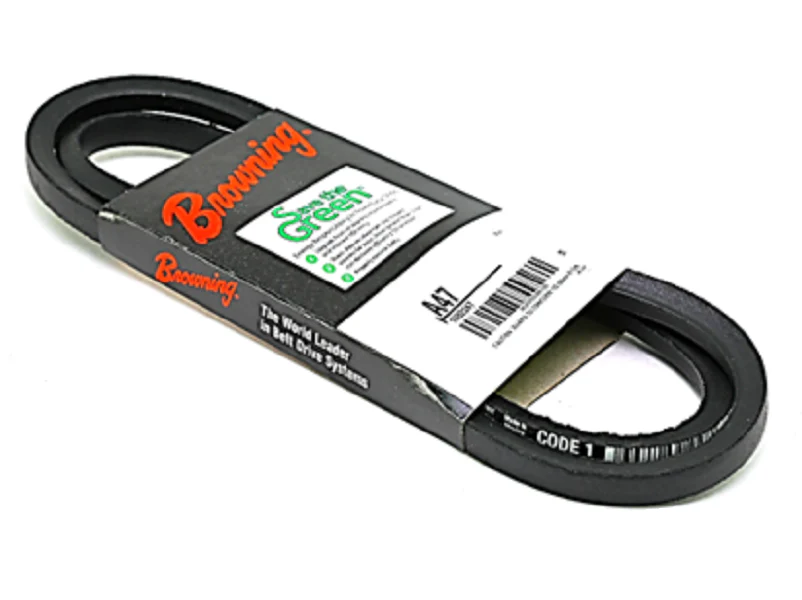

Browning A47 Belt
For industrial-grade power transmission, the Browning A47 Super Grip Belt is engineered to meet the rigorous demands of HVACR systems, including air handlers and rooftop units. This Type A V-belt features a 49.2" outside diameter and a 1/2" top width, making it a reliable choice for fractional horsepower and high-speed industrial drives. Constructed with neoprene-wrapped synthetic rubber, the belt utilizes a single-fabric "wrapped" design that enhances flexibility and provides smoother, quieter operation compared to raw edge alternatives. This design is specifically more tolerant to slight pulley misalignment and slipping, which is critical for maintaining consistent airflow in commercial ventilation setups.
The internal high-tensile synthetic fiber cords are specially treated to resist elongation and provide a longer flex life. This classical A-section belt adheres to the Browning Code 1 match tolerance, ensuring that multiple belts used in a single drive system meet tighter-than-RMA standards for uniform load distribution. Heat and oil resistance, combined with static-conducting properties, make the A47 V-belt a standard component for contractors looking to reduce vibration and bearing wear in heavy-duty mechanical rooms.
Key Benefits- Wrapped construction offers superior tolerance to slipping and misalignment versus raw edge belts.
- Code 1 match system ensures consistent sizing for multi-belt drives, exceeding standard RMA requirements.
- Neoprene impregnated fabric provides essential oil and heat resistance for high-temperature HVACR environments.
- High-tensile cords prevent belt stretch, reducing the frequency of take-up adjustments and maintenance.
Is the Browning A47 compatible with 4L490 fractional horsepower belts?
Yes, the A47 is the industrial equivalent to a 4L490 belt, featuring the same 1/2" top width and approximately the same 49" nominal length, though engineered for higher torque and industrial durability.
What is the maximum operating temperature for this Super Grip belt?
This belt is rated for standard industrial environments with an operating temperature typically reaching up to 140°F (60°C).
How does "Code 1" matching help my multi-belt drive?
Browning's Code 1 system ensures that every A47 belt produced falls within a single, tight tolerance range. This means you do not need to look for specific "match numbers" when installing a set of belts on the same sheave.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
