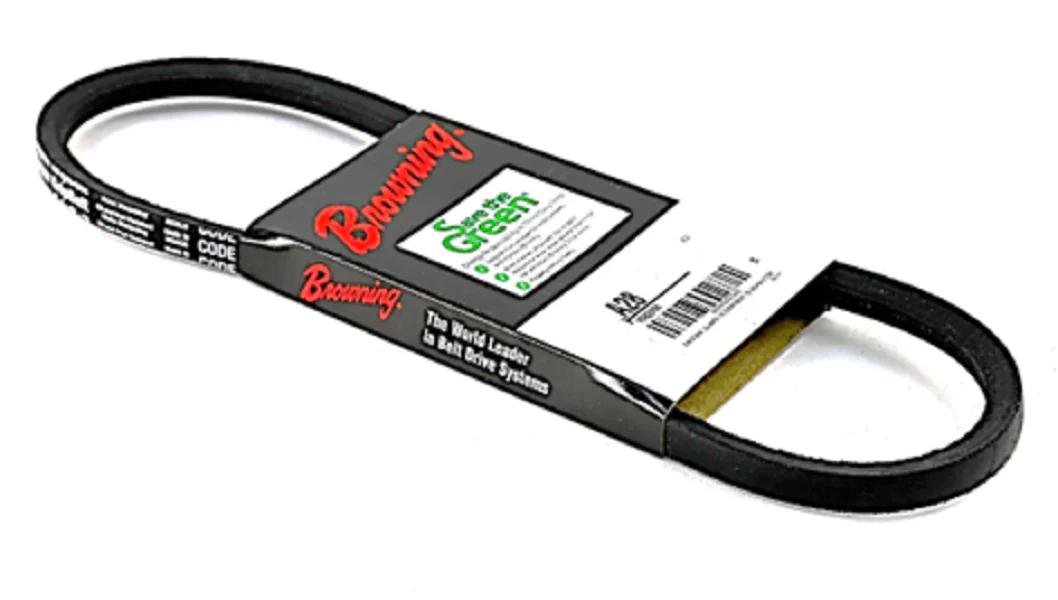

Browning A28 Belt

The Browning A28 is a high-performance, A Section Classical V-Belt engineered for heavy-duty power transmission in HVACR systems and industrial blowers. This wrapped construction belt features a single-fabric design that enhances flexibility while providing superior resistance to heat, oil, and harsh ambient contaminants. With a 30.2-inch outside diameter and a precise 29.3-inch pitch length, the A28 utilizes high-tensile synthetic cords to maintain dimensional stability and resist elongation, ensuring consistent torque delivery without frequent retensioning. The 1/2-inch top width and 5/16-inch thickness are manufactured to RMA standards under the Browning Code 1 match system, guaranteeing a perfect fit on standard sheaves and reducing vibration in multi-belt drive configurations. Built for longevity in continuous-duty applications, this neoprene V-belt provides the smooth, quiet operation required for critical air handling and refrigeration equipment.

Key Benefits:

• Enhanced Flexibility: Single-fabric wrap design allows for better flex life and compatibility with sub-minimal pitch diameter sheaves.
• Slip Tolerance: Wrapped construction is more forgiving of slight sheave misalignment and slipping compared to raw-edge alternatives.
• Code 1 Matching: Manufactured to close tolerances, allowing for easy selection of multiple A28 belts for consistent load sharing.
• Environmental Resilience: Neoprene compound offers professional-grade resistance to oil, ozone, and high-temperature operating environments.
• Vibration Dampening: Precision-engineered thickness and width reduce mechanical noise and protect motor bearings.

Common Questions:

• What is the difference between an A28 and an AX28? The A28 is a wrapped, smooth-walled belt designed for slip tolerance and quiet operation, whereas the AX28 is a cogged, raw-edge belt designed for higher heat dissipation and smaller pulley diameters.
• How do I confirm the 30.2-inch length is correct for my drive? Measure the outside circumference of your existing belt with a flexible tape; the Browning A28 is specifically labeled by its 28-inch nominal inside length but measures approximately 30.2 inches on the outer edge.
• Can this belt be used in oily environments? Yes, the neoprene construction and protective fabric wrap are designed to withstand exposure to oils and greases common in mechanical rooms and industrial settings.

Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
