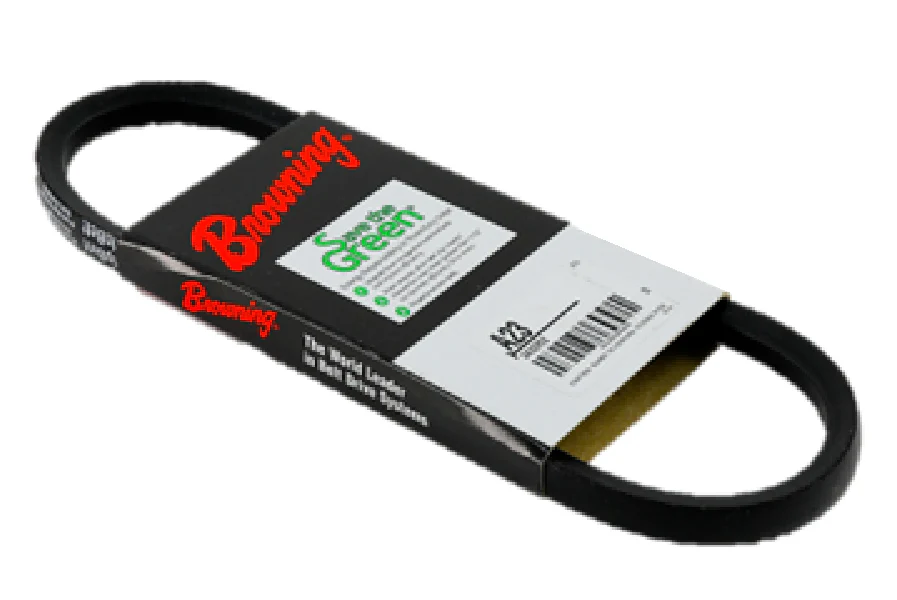

Browning A23 Belt
The Browning A23 Belt is a heavy-duty Type A Super Grip Belt engineered for high-demand HVACR blower motor and industrial fan applications. This classic A-section wrapped belt features a 25.2-inch outside diameter and a 24.3-inch pitch length, providing a precise fit for standard 1/2-inch sheaves. Designed with a Code 1 match tolerance, these belts ensure uniform load distribution when used in multiple-belt drives, exceeding RMA standards for length consistency. The neoprene construction is reinforced with high-tensile synthetic fiber cords, delivering superior resistance to oil, heat, and elongation. Its single-fabric wrapped design offers greater flexibility and a higher tolerance for minor pulley misalignment compared to raw-edge alternatives, resulting in quieter operation and reduced vibration in ventilation units. As a static conducting component, it maintains safety in sensitive environments while maximizing horsepower capacity within a compact drive footprint.
Key Benefits- Code 1 Match Tolerance: Allows for easy matching of multiple belts on a single drive without the need for manual measurement.
- Wrapped Construction: Provides smoother, quieter operation and increased tolerance for slipping or slight misalignment.
- High-Tensile Synthetic Cords: Minimizes belt stretch and maximizes flex life under peak-load conditions.
- Environmental Resistance: Neoprene compound resists oil and heat degradation in high-temperature air handler environments.
- Sub-Minimum Pitch Compatibility: Flexible single-fabric design supports use with sub-minimum pitch diameter sheaves to reduce overall drive costs.
- What is the difference between an A23 and an AX23 belt? The A23 is a wrapped belt designed for smoother operation and misalignment tolerance, whereas the AX23 is a cogged/notched belt designed for better heat dissipation on extremely small pulleys.
- Can I use a 4L belt in place of this Browning A23? No. While the widths are similar, A-section industrial belts have a higher horsepower capacity and different construction than 4L light-duty belts; they are not interchangeable in commercial HVAC applications.
- How do I know if my belt needs more tension? Squealing on startup or glazed, shiny sidewalls typically indicate slippage, which necessitates re-tensioning to prevent premature failure.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
