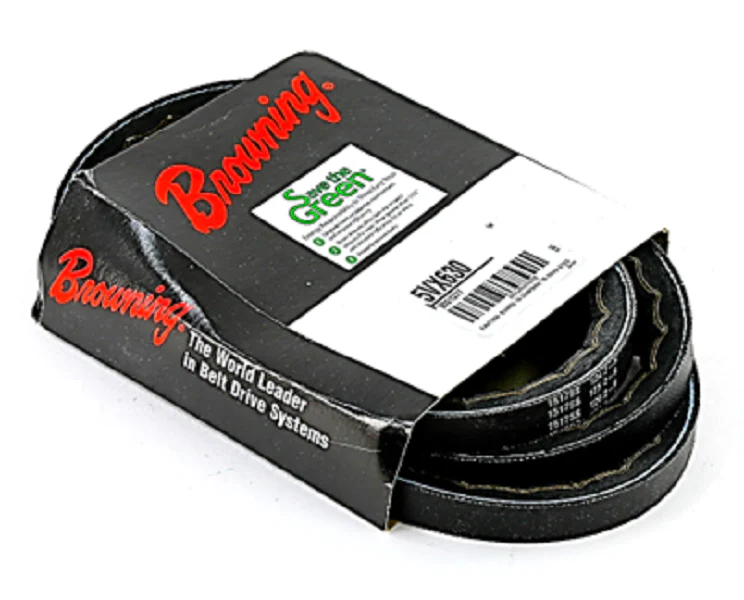

Browning 5VX630 Belt
When you are managing high-torque HVACR systems, the Browning 5VX630 Belt is the industry standard for high-capacity power transmission in tight spaces. This 5VX630 V-belt features a 63-inch outside diameter and a narrow 5V section width of 5/8 inch, engineered specifically to handle higher horsepower loads than classical profiles. Built with a notched 358 Gripbelt design, these molded cogs increase flexibility and allow for superior heat dissipation, making it ideal for the demanding duty cycles of commercial fan drives and pump systems. The EPDM rubber construction ensures the belt remains oil and heat resistant, maintaining its 98% efficiency even in volatile ambient conditions. By utilizing the Browning 358 Gripnotch technology, contractors can often reduce sheave size and drive weight while increasing overall torque capacity, providing a more compact and cost-effective drive solution for industrial HVAC drive maintenance.
Key Benefits- High Horsepower Density: Transmits up to 3x more power in the same space compared to standard A/B section belts.
- Superior Heat Management: The notched, cogged design increases surface area for cooling and reduces internal bending stress.
- Static Conductivity: Meets RMA standards for static conductivity, ensuring safe operation in sensitive industrial environments.
- Optimized Efficiency: Precision-ground sidewalls ensure a uniform wedging action, reducing slippage and energy loss.
- Durable EPDM Material: Resists ozone, sunlight, and chemical contaminants for a longer service life in rooftop or mechanical room applications.
Can I substitute a 5VX630 for a standard 5V630 belt?
Yes. The 5VX suffix indicates a notched construction which is physically compatible with the 5V sheave but offers better flexibility and heat resistance, especially on smaller pulley diameters.
How do I know when it is time to replace my Gripnotch belt?
Check for "chunk-out" in the notches, excessive sidewall glazing, or a "bottomed out" appearance in the sheave groove. If you hear start-up squeal, first verify tension before assuming wear.
Is the Browning 5VX630 compatible with other brands?
The 5VX630 is a standard industry size and can cross-reference with Gates, Dayco, or Carlisle variants, though we recommend maintaining consistent brands on multiple-belt drives for matched performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $53.62
-65%$53.62
$18.77Browning 5VX630 Belt
When you are managing high-torque HVACR systems, the Browning 5VX630 Belt is the industry standard for high-capacity power transmission in tight spaces. This 5VX630 V-belt features a 63-inch outside diameter and a narrow 5V section width of 5/8 inch, engineered specifically to handle higher horsepower loads than classical profiles. Built with a notched 358 Gripbelt design, these molded cogs increase flexibility and allow for superior heat dissipation, making it ideal for the demanding duty cycles of commercial fan drives and pump systems. The EPDM rubber construction ensures the belt remains oil and heat resistant, maintaining its 98% efficiency even in volatile ambient conditions. By utilizing the Browning 358 Gripnotch technology, contractors can often reduce sheave size and drive weight while increasing overall torque capacity, providing a more compact and cost-effective drive solution for industrial HVAC drive maintenance.
Key Benefits- High Horsepower Density: Transmits up to 3x more power in the same space compared to standard A/B section belts.
- Superior Heat Management: The notched, cogged design increases surface area for cooling and reduces internal bending stress.
- Static Conductivity: Meets RMA standards for static conductivity, ensuring safe operation in sensitive industrial environments.
- Optimized Efficiency: Precision-ground sidewalls ensure a uniform wedging action, reducing slippage and energy loss.
- Durable EPDM Material: Resists ozone, sunlight, and chemical contaminants for a longer service life in rooftop or mechanical room applications.
Can I substitute a 5VX630 for a standard 5V630 belt?
Yes. The 5VX suffix indicates a notched construction which is physically compatible with the 5V sheave but offers better flexibility and heat resistance, especially on smaller pulley diameters.
How do I know when it is time to replace my Gripnotch belt?
Check for "chunk-out" in the notches, excessive sidewall glazing, or a "bottomed out" appearance in the sheave groove. If you hear start-up squeal, first verify tension before assuming wear.
Is the Browning 5VX630 compatible with other brands?
The 5VX630 is a standard industry size and can cross-reference with Gates, Dayco, or Carlisle variants, though we recommend maintaining consistent brands on multiple-belt drives for matched performance.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
