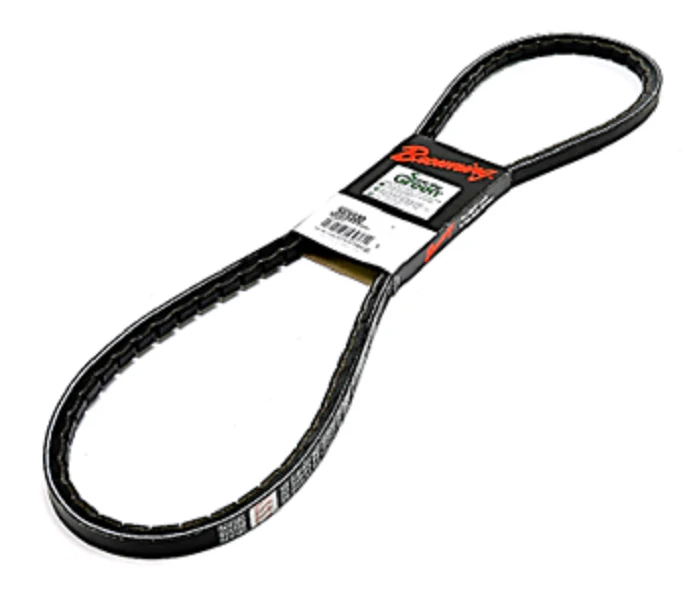

Browning 5VX580 Belt
The Browning 5VX580 is a high-performance 5VX section cogged V-belt engineered for demanding HVACR and industrial drive applications. As part of the 358 Gripnotch line, this 58-inch outside diameter belt features a raw-edge, notched construction that significantly improves flexibility and heat dissipation compared to standard wrapped belts. Constructed from premium EPDM rubber with polyester tensile cords, the 5VX580 maintains structural integrity across an extreme temperature range of -60°F to +250°F. The notched 358 Gripbelt design allows for higher horsepower ratings in a more compact drive footprint, often enabling the use of smaller sheaves without sacrificing torque transmission. This wedge-style belt meets RMA standards for static conductivity and oil resistance, ensuring reliable operation in contaminated environments. For contractors managing multi-belt drives, the "Code 1" matching system ensures tight tolerances for uniform load distribution. When replacing a Browning 5VX580 Belt, ensure sheave grooves are free of wear to prevent premature cord tension loss and maximize drive efficiency.
Key Benefits- Enhanced Power Density: Delivers significantly more horsepower than classical belts, allowing for more compact drive designs and reduced overall hardware costs.
- Extreme Thermal Stability: The EPDM synthetic rubber construction resists hardening and cracking in ambient temperatures ranging from -60°F to 250°F.
- High Energy Efficiency: The cogged profile reduces internal friction and bending stress, reaching up to 98% V-belt drive efficiency.
- Maximum Flexibility: Precision-molded cogs allow the belt to operate effectively on smaller diameter sheaves while reducing vibration and bearing load.
- Code 1 Matching: Simplifies inventory and installation by maintaining tolerances tighter than RMA standards for immediate multi-groove pairing.
Is the Browning 5VX580 interchangeable with a standard 5V580 belt?
Yes, the 5VX580 is the notched equivalent of a 5V580. The 5VX version provides superior flexibility and higher horsepower capacity, making it a preferred upgrade for high-stress applications.
Does this belt require special sheaves?
It is designed to run in standard 5V or 5VX sheaves. For optimal performance and to maintain the higher horsepower rating, ensure the sheaves meet RMA dimensional standards.
What is the benefit of the EPDM construction over standard rubber?
EPDM is more resistant to heat, ozone, and weather aging, which prevents the belt from becoming brittle and failing prematurely in rooftop units and high-heat mechanical rooms.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $48.97
-65%$48.97
$17.14Browning 5VX580 Belt
The Browning 5VX580 is a high-performance 5VX section cogged V-belt engineered for demanding HVACR and industrial drive applications. As part of the 358 Gripnotch line, this 58-inch outside diameter belt features a raw-edge, notched construction that significantly improves flexibility and heat dissipation compared to standard wrapped belts. Constructed from premium EPDM rubber with polyester tensile cords, the 5VX580 maintains structural integrity across an extreme temperature range of -60°F to +250°F. The notched 358 Gripbelt design allows for higher horsepower ratings in a more compact drive footprint, often enabling the use of smaller sheaves without sacrificing torque transmission. This wedge-style belt meets RMA standards for static conductivity and oil resistance, ensuring reliable operation in contaminated environments. For contractors managing multi-belt drives, the "Code 1" matching system ensures tight tolerances for uniform load distribution. When replacing a Browning 5VX580 Belt, ensure sheave grooves are free of wear to prevent premature cord tension loss and maximize drive efficiency.
Key Benefits- Enhanced Power Density: Delivers significantly more horsepower than classical belts, allowing for more compact drive designs and reduced overall hardware costs.
- Extreme Thermal Stability: The EPDM synthetic rubber construction resists hardening and cracking in ambient temperatures ranging from -60°F to 250°F.
- High Energy Efficiency: The cogged profile reduces internal friction and bending stress, reaching up to 98% V-belt drive efficiency.
- Maximum Flexibility: Precision-molded cogs allow the belt to operate effectively on smaller diameter sheaves while reducing vibration and bearing load.
- Code 1 Matching: Simplifies inventory and installation by maintaining tolerances tighter than RMA standards for immediate multi-groove pairing.
Is the Browning 5VX580 interchangeable with a standard 5V580 belt?
Yes, the 5VX580 is the notched equivalent of a 5V580. The 5VX version provides superior flexibility and higher horsepower capacity, making it a preferred upgrade for high-stress applications.
Does this belt require special sheaves?
It is designed to run in standard 5V or 5VX sheaves. For optimal performance and to maintain the higher horsepower rating, ensure the sheaves meet RMA dimensional standards.
What is the benefit of the EPDM construction over standard rubber?
EPDM is more resistant to heat, ozone, and weather aging, which prevents the belt from becoming brittle and failing prematurely in rooftop units and high-heat mechanical rooms.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
