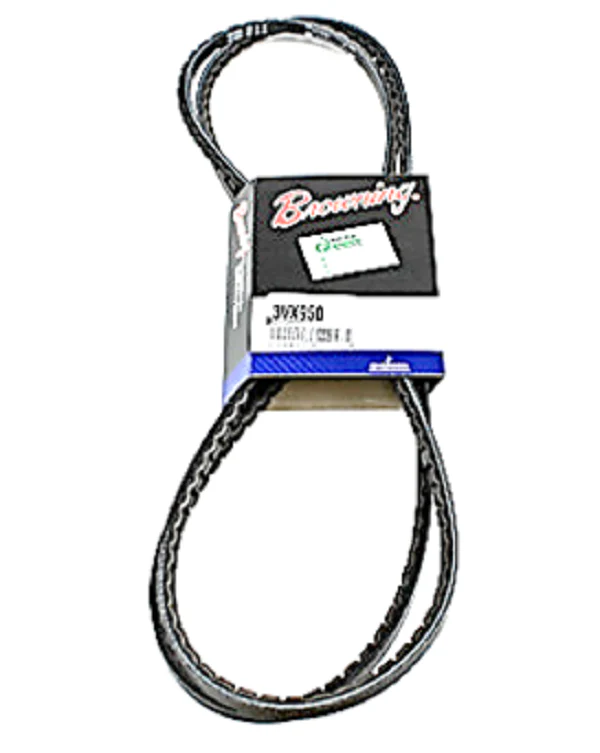

Browning 3VX950 Belt
The Browning 3VX950 Belt is a precision-engineered 358 Gripbelt designed for high-capacity power transmission in compact HVACR drive systems. Featuring a 95" outside diameter and a narrow wedge 3V profile, this notched V-belt utilizes a raw-edge construction that eliminates the slippage often associated with wrapped belts. The cogged design increases surface area for heat dissipation and allows the belt to operate efficiently over small diameter sheaves by reducing bending stress. Engineered for high-duty cycle applications, the EPDM compound provides superior resistance to oil, heat, and environmental degradation, ensuring stable tension maintenance under heavy loads. This belt is a direct replacement for Type 3V notched belts in commercial air handlers and refrigeration compressors where space is limited but torque requirements are high. The molded notches improve flexibility without sacrificing the lateral rigidity needed to prevent rollover in the groove, making it a reliable choice for preventative maintenance in demanding mechanical environments.
- Enhanced Power Density: The narrow wedge design allows for higher horsepower ratings in a smaller footprint compared to standard A or B section belts.
- High Thermal Stability: Specifically formulated to handle temperature extremes common in HVAC mechanical rooms and rooftop units.
- Optimized Energy Efficiency: The cogged profile reduces internal friction and energy loss, lowering the overall amperage draw of the motor.
- Technical Precision: Meets RMA standards for oil and heat resistance and static conductivity for safe operation in industrial settings.
Common Questions
What are the benefits of using a 3VX notched belt over a standard 3V belt?
The "X" designates a notched construction, which provides better flexibility and heat dissipation. This allows the Browning 3VX950 to run on smaller pulleys and last longer in high-heat applications than a smooth-backed 3V belt.
How do I verify the length of a 3VX950 Belt?
The 3VX950 nomenclature indicates a 95-inch nominal outside length. When replacing a worn belt, check the belt pitch diameter and the center distance of your sheaves to ensure this length meets your drive tensioning range.
Is the Browning 3VX950 compatible with standard 3V sheaves?
Yes, 3VX notched belts are designed to operate in standard 3V series sheaves. They provide a deeper grip and better wedging action, which is critical for high-torque startup conditions in centrifugal fans and pumps.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
