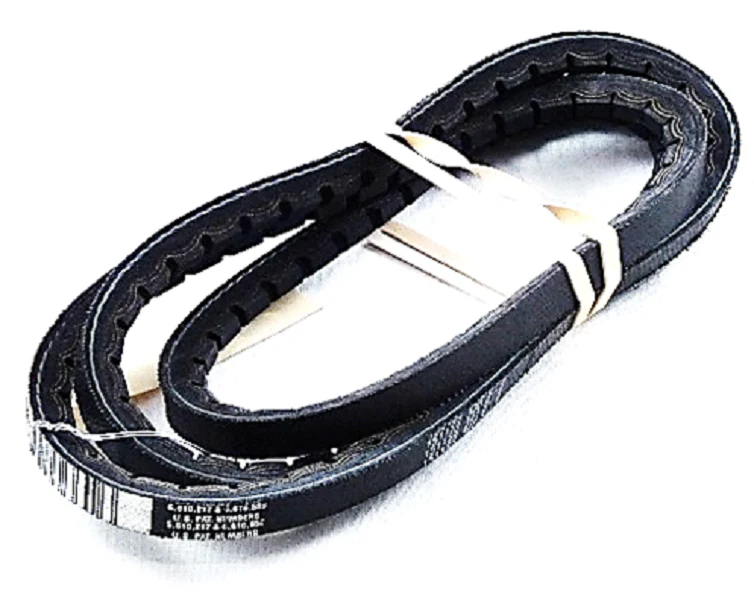

Browning 3VX500 Belt
Ensure your drive systems maintain peak efficiency with the Browning 3VX500, a professional-grade cogged wedge v-belt engineered for high-demand HVACR applications. This 3VX section belt features a 50-inch outside circumference and the signature 358 Gripnotch design, which utilizes a raw-edge, notched construction to significantly reduce bending stress when operating on small-diameter sheaves. Unlike standard wrapped belts, the Browning 3VX500 Belt is manufactured from high-grade EPDM rubber, providing superior resistance to oil and heat while maintaining a stable temperature range from -60°F to +250°F. The precision-ground sidewalls offer a 98% energy transfer efficiency, ensuring maximum power transmission with minimal vibration. Designed for compact, high-speed drives, this 3VX500 v-belt is a reliable Gripnotch belt replacement for maintaining consistent airflow in rooftop units and industrial blowers where 3/8-inch top width narrow-profile belts are specified.
Key Benefits:- Maximum Flexibility: The notched "Gripnotch" design allows the belt to wrap around smaller pulleys without the internal stress or cracking seen in standard belts.
- Enhanced Heat Dissipation: The raw-edge construction and EPDM material run cooler, preventing premature glazing and hardening in high-ambient HVAC environments.
- High Horsepower Capacity: Narrow 3V profile supports higher load ratings than equivalent-sized conventional belts, allowing for more compact drive designs.
- Precision Matching: Part of the "Code 1" match system, ensuring that multiple belts on a single drive share the load equally without manual matching.
Can I substitute a 3VX belt for a 3L or standard A-section belt?
No. While they may share similar widths, the 3VX profile is a "narrow" wedge design with a different depth and angle. Using a 3VX500 in a sheave designed for 3L or A-section belts will result in improper seating, accelerated wear, and potential drive failure.
Why is my 3VX500 squealing only during motor startup?
Squealing at startup usually indicates that the belt has reached its "lowest tension at which it will not slip." If this occurs, check for worn sheave grooves or slight under-tensioning. EPDM belts do not stretch as much as older neoprene versions, so verify tension with a deflection gauge after the first 24 hours of operation.
How do I know when to replace the sheaves along with the belt?
If you notice the sidewalls of the 3VX500 are becoming shiny or "glazed" quickly, or if the belt is "bottoming out" in the groove, the sheave is likely worn. A 3V sheave should be replaced if a groove gauge shows more than 1/32" of wear on the sidewalls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $23.64
-65%$23.64
$8.27Browning 3VX500 Belt
Ensure your drive systems maintain peak efficiency with the Browning 3VX500, a professional-grade cogged wedge v-belt engineered for high-demand HVACR applications. This 3VX section belt features a 50-inch outside circumference and the signature 358 Gripnotch design, which utilizes a raw-edge, notched construction to significantly reduce bending stress when operating on small-diameter sheaves. Unlike standard wrapped belts, the Browning 3VX500 Belt is manufactured from high-grade EPDM rubber, providing superior resistance to oil and heat while maintaining a stable temperature range from -60°F to +250°F. The precision-ground sidewalls offer a 98% energy transfer efficiency, ensuring maximum power transmission with minimal vibration. Designed for compact, high-speed drives, this 3VX500 v-belt is a reliable Gripnotch belt replacement for maintaining consistent airflow in rooftop units and industrial blowers where 3/8-inch top width narrow-profile belts are specified.
Key Benefits:- Maximum Flexibility: The notched "Gripnotch" design allows the belt to wrap around smaller pulleys without the internal stress or cracking seen in standard belts.
- Enhanced Heat Dissipation: The raw-edge construction and EPDM material run cooler, preventing premature glazing and hardening in high-ambient HVAC environments.
- High Horsepower Capacity: Narrow 3V profile supports higher load ratings than equivalent-sized conventional belts, allowing for more compact drive designs.
- Precision Matching: Part of the "Code 1" match system, ensuring that multiple belts on a single drive share the load equally without manual matching.
Can I substitute a 3VX belt for a 3L or standard A-section belt?
No. While they may share similar widths, the 3VX profile is a "narrow" wedge design with a different depth and angle. Using a 3VX500 in a sheave designed for 3L or A-section belts will result in improper seating, accelerated wear, and potential drive failure.
Why is my 3VX500 squealing only during motor startup?
Squealing at startup usually indicates that the belt has reached its "lowest tension at which it will not slip." If this occurs, check for worn sheave grooves or slight under-tensioning. EPDM belts do not stretch as much as older neoprene versions, so verify tension with a deflection gauge after the first 24 hours of operation.
How do I know when to replace the sheaves along with the belt?
If you notice the sidewalls of the 3VX500 are becoming shiny or "glazed" quickly, or if the belt is "bottoming out" in the groove, the sheave is likely worn. A 3V sheave should be replaced if a groove gauge shows more than 1/32" of wear on the sidewalls.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
