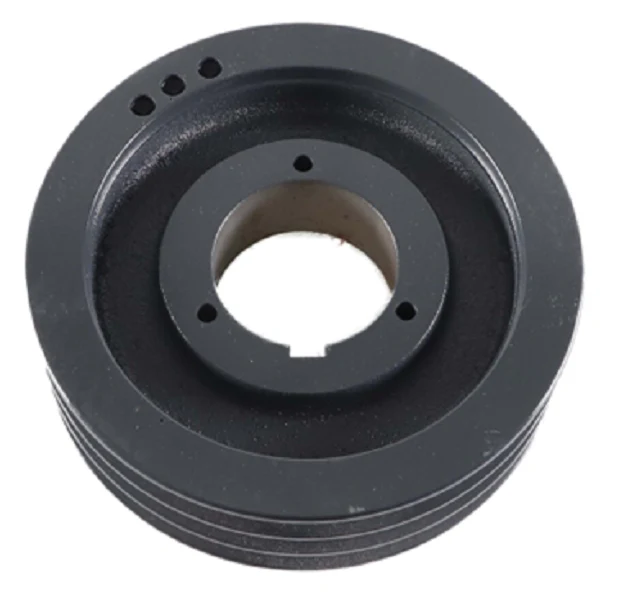

Browning 3TB80 Sheave
The Browning 3TB80 Sheave is a high-performance three groove TB Gripbelt sheave engineered for demanding industrial power transmission and HVACR applications. Constructed from close-grain cast iron, this split taper bushed sheave is precision-machined to ensure minimal vibration and maximum drive efficiency. It features a versatile combination groove design, allowing for the seamless operation of A, AX, B, and BX section V-belts. With an 8.35" outside diameter and a 8.0" datum diameter for B belts, this unit provides reliable torque transfer in multi-belt systems. Designed for use with Q1 series split taper bushings, it utilizes a key-to-key drive system that secures both the shaft and the hub, preventing slippage during high-torque startups. The webbed construction provides a balance of structural integrity and weight reduction, making it a standard choice for contractors requiring a durable, fixed pitch sheave for 3 groove V-belt configurations.
Key Benefits:- Universal Compatibility: The combination groove design supports A, AX, B, and BX belts, offering flexibility for various pitch diameters and horsepower requirements.
- Precision Tolerance: Machined from close-grain cast iron to ensure concentricity and reduce belt wear.
- Superior Grip: Uses Q1 series bushings with a split taper design for a secure, key-to-key drive to both the shaft and hub.
- Heavy-Duty Construction: Built for industrial environments with three grooves to handle higher load capacities compared to single or double-groove pulleys.
- Which bushing is compatible with the Browning 3TB80? This sheave is specifically designed to work with Q1 series split taper bushings, which must be purchased separately to match your specific shaft diameter.
- Can I run different belt types in this sheave? Yes, the Browning 3TB80 is engineered with a combination groove that accepts both A (4L) and B (5L) section belts, including their notched AX and BX equivalents.
- What is the bore range for this unit? Depending on the Q1 bushing selected, the bore range typically accommodates shafts from 3/4" to 2-11/16".
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
