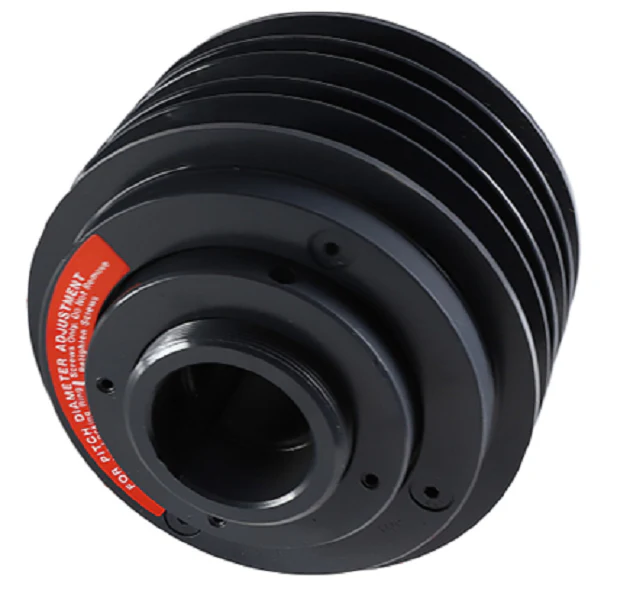

Browning 3MVP45B59X 1 5/8 Sheave
The Browning 3MVP45B59X is a high-performance three groove variable speed sheave engineered for demanding HVACR applications requiring precise airflow adjustment. Featuring a 1 5/8" fixed bore and a 6.18" outside diameter, this component is designed for seamless integration with A and B section belts, including 4L, 5L, A, AX, B, and BX profiles. The MVP bushed sheave design allows for granular pitch diameter tuning, enabling technicians to balance systems and meet static pressure requirements without changing pulleys. Constructed from high-grade cast iron, the Browning variable pitch sheave provides the durability needed for high-torque fan and blower assemblies. This HVAC drive component ensures concentricity and minimal vibration, extending the service life of both V-belts and motor bearings. Whether you are performing a commercial blower speed adjustment or replacing a worn 3MVP45B59X sheave, this part offers the mechanical precision required for optimal power transmission.
- Flexible Drive Ratios: The variable pitch design allows for fine-tuning of fan RPMs to match specific system requirements.
- Multi-Groove Capacity: Three-groove configuration supports higher horsepower loads and prevents belt slippage in heavy-duty applications.
- Cross-Belt Compatibility: Engineered to work efficiently with both A and B section belts for maximum versatility on the job site.
- Precision Machined: High-tolerance 1 5/8" bore ensures a secure shaft fit, reducing runout and mechanical wear.
Common Questions
What is the pitch diameter range for the 3MVP45B59X?
The pitch diameter for this sheave typically ranges from 3.4" to 4.4" for A belts and 3.7" to 4.7" for B belts, depending on the adjustment setting.
Can I use this sheave with notched AX or BX belts?
Yes, the Browning 3MVP45B59X is fully compatible with Cogged/Notched belts (AX, BX), which are often preferred for smaller diameters to increase heat dissipation.
How do I adjust the speed on this variable sheave?
Speed is adjusted by loosening the set screws and rotating the adjustable flange to move the belt higher or lower in the groove, followed by verifying alignment and tension.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
