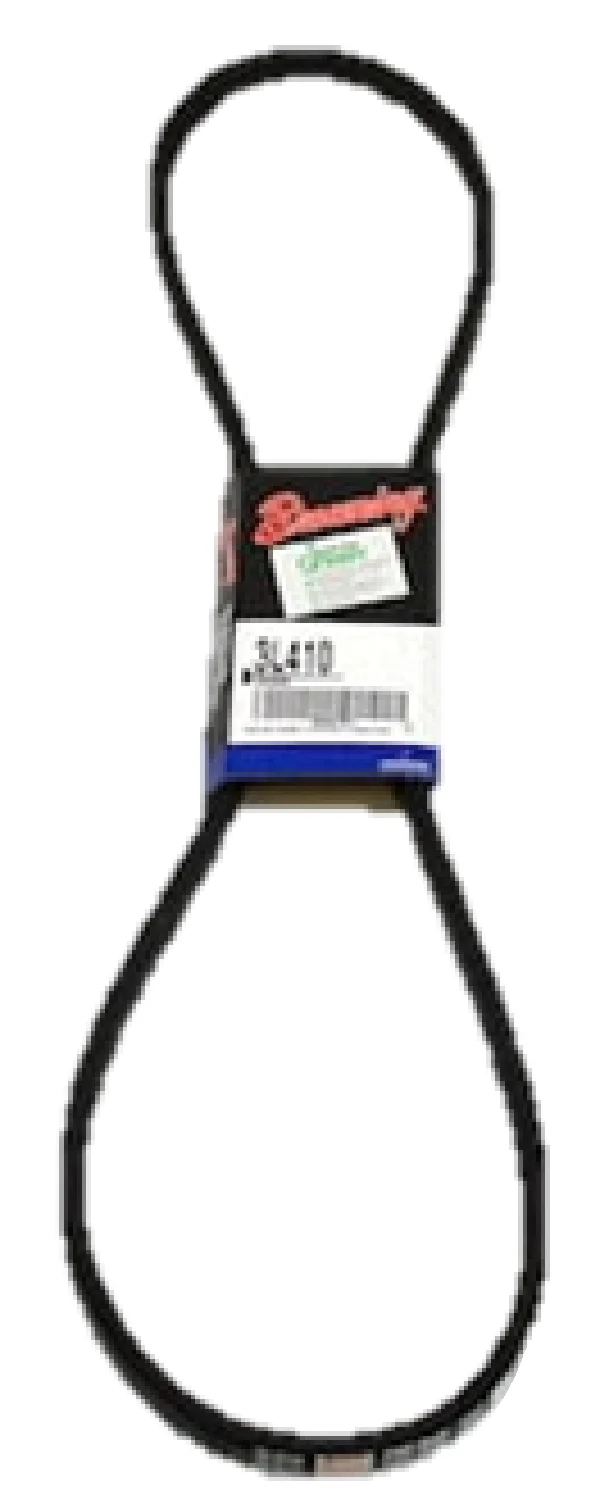

Browning 3L410 Belt
The Browning 3L410 is a high-performance Fractional Horsepower (FHP) V-Belt engineered for heavy-duty light-duty drive applications in HVACR systems. Featuring a 3L cross section, this wrapped construction belt is designed to handle the specific torque requirements of small diameter sheaves found in commercial fans, blowers, and pumps. With a nominal 41-inch outside length and a 3/8-inch top width, the 3L410 utilizes a durable neoprene rubber compound reinforced with high-strength tensile cords to maintain operational stability under varying thermal loads. Its wrapped exterior provides superior resistance to sliding and misalignment compared to raw-edge alternatives, ensuring smooth power transmission in tight-clearance equipment. This non-cogged belt meets RMA standards for oil and heat resistance while operating effectively at temperatures up to 140°F. For contractors overseeing preventative maintenance, the Browning 3L410 offers a reliable solution for restoring system efficiency and reducing vibration in fractional-drive motor assemblies.
Key Benefits for HVACR Technicians- Optimized for Small Sheaves: The 3L profile is specifically designed for small-diameter pulleys, providing maximum flexibility without compromising the belt's structural integrity.
- Reduced Noise and Vibration: The wrapped cover construction allows for a smoother entry into the sheave groove, resulting in quieter operation for indoor air handling units.
- Industrial-Grade Materials: Constructed with heat and oil-resistant synthetic rubber to withstand the harsh environments of mechanical rooms and rooftop units.
- Precise Power Transfer: High-tenacity tensile cords minimize stretching, reducing the frequency of take-up adjustments and manual belt tensioning.
What is the difference between pitch length and outside length for this belt?
The Browning 3L410 has a 41-inch outside circumference, while the pitch length (the neutral axis where the cord is located) is approximately 40.3 inches. Always confirm the belt series (3L vs A) as they are not interchangeable due to different groove angles.
Can this belt handle shock loads in motor start-ups?
Yes, the wrapped FHP belt design is naturally more tolerant to momentary slippage and shock loads during motor startup than notched belts, protecting the motor shaft and bearings from excessive stress.
How do I ensure the best performance from a new 3L410?
Proper V-belt tensioning is critical. After the initial 8 to 24 hours of "run-in" time, the belt should be re-tensioned to account for initial seating in the sheaves to prevent glazing and premature wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
Original: $24.92
-65%$24.92
$8.72Browning 3L410 Belt
The Browning 3L410 is a high-performance Fractional Horsepower (FHP) V-Belt engineered for heavy-duty light-duty drive applications in HVACR systems. Featuring a 3L cross section, this wrapped construction belt is designed to handle the specific torque requirements of small diameter sheaves found in commercial fans, blowers, and pumps. With a nominal 41-inch outside length and a 3/8-inch top width, the 3L410 utilizes a durable neoprene rubber compound reinforced with high-strength tensile cords to maintain operational stability under varying thermal loads. Its wrapped exterior provides superior resistance to sliding and misalignment compared to raw-edge alternatives, ensuring smooth power transmission in tight-clearance equipment. This non-cogged belt meets RMA standards for oil and heat resistance while operating effectively at temperatures up to 140°F. For contractors overseeing preventative maintenance, the Browning 3L410 offers a reliable solution for restoring system efficiency and reducing vibration in fractional-drive motor assemblies.
Key Benefits for HVACR Technicians- Optimized for Small Sheaves: The 3L profile is specifically designed for small-diameter pulleys, providing maximum flexibility without compromising the belt's structural integrity.
- Reduced Noise and Vibration: The wrapped cover construction allows for a smoother entry into the sheave groove, resulting in quieter operation for indoor air handling units.
- Industrial-Grade Materials: Constructed with heat and oil-resistant synthetic rubber to withstand the harsh environments of mechanical rooms and rooftop units.
- Precise Power Transfer: High-tenacity tensile cords minimize stretching, reducing the frequency of take-up adjustments and manual belt tensioning.
What is the difference between pitch length and outside length for this belt?
The Browning 3L410 has a 41-inch outside circumference, while the pitch length (the neutral axis where the cord is located) is approximately 40.3 inches. Always confirm the belt series (3L vs A) as they are not interchangeable due to different groove angles.
Can this belt handle shock loads in motor start-ups?
Yes, the wrapped FHP belt design is naturally more tolerant to momentary slippage and shock loads during motor startup than notched belts, protecting the motor shaft and bearings from excessive stress.
How do I ensure the best performance from a new 3L410?
Proper V-belt tensioning is critical. After the initial 8 to 24 hours of "run-in" time, the belt should be re-tensioned to account for initial seating in the sheaves to prevent glazing and premature wear.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
