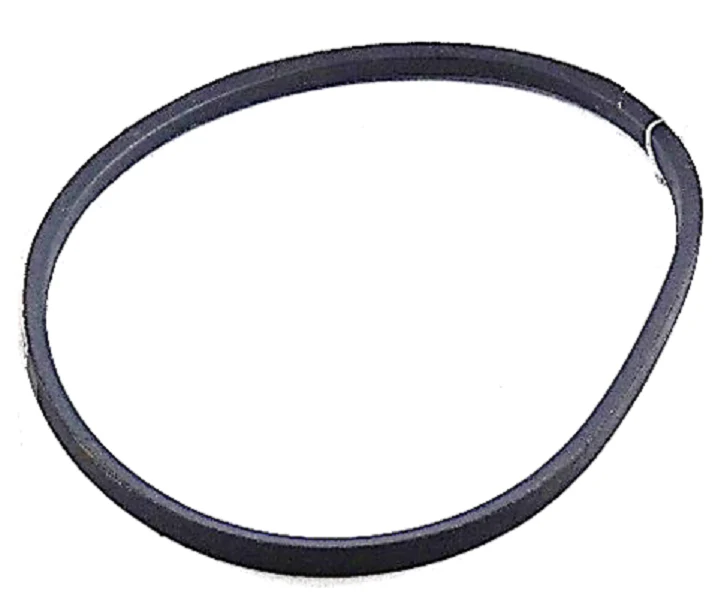

Browning 3L240 Belt
The Browning 3L240 Belt is a professional-grade fractional horsepower (FHP) V-belt engineered for light-duty HVACR and industrial drive systems. Featuring a 3L section profile with a 3/8-inch top width and a 24-inch outside circumference, this wrapped belt is designed to provide smooth, quiet power transmission in small sheave applications where space and precision are critical. Built with oil and heat-resistant rubber compounds, the Browning 3L240 maintains its integrity in ambient temperatures up to 140°F, making it a reliable choice for blower drives, exhaust fans, and centrifugal pump configurations.
The wrapped construction of this industrial V-belt offers superior tolerance to slight pulley misalignment and inherent vibration compared to raw-edge alternatives. Its synthetic fiber reinforcing cords are strategically positioned to handle fractional HP loads while minimizing stretch and maintaining consistent 16-speed or variable-speed performance. For contractors managing HVAC belt replacement schedules, the 3L240 provides the exact 23.3-inch pitch length required to restore OEM airflow specifications in light-commercial and residential air handlers.
Key Benefits:- Wrapped Belt Design: Enhances durability and provides quieter operation in noise-sensitive HVAC environments.
- Optimized for Small Pulleys: High flexibility allows for efficient power transfer around small-diameter sheaves without premature cracking.
- Contaminant Resistance: Specially formulated rubber resists oil, heat, and environmental debris common in mechanical rooms.
- Precision Fit: Standardized 3/8" top width and 24" nominal length ensure drop-in compatibility for FHP motors.
- RMA Standards: Manufactured to meet rigorous industry specifications for static conductivity and dimensional stability.
Can I use a 3L240 belt on a backside idler?
Yes, the wrapped construction of the Browning 3L series is specifically designed to handle the bending stress associated with backside idlers and light-duty tensioning systems.
What is the difference between 3L240 and 3V240 belts?
These are not interchangeable. The 3L240 is a light-duty (FHP) belt with a different profile depth (7/32") compared to high-capacity 3V wedge belts; always match the section code to your pulley groove.
How do I know if my 3L240 belt needs replacement?
Check for glazing on the sidewalls, fraying of the wrapped cover, or bottoming out in the sheave, which indicates the belt has narrowed beyond its effective 3/8" width.
This item is not eligible for free shipping.
Disclaimer: While we strive for 100% accuracy, product data and specifications are subject to change. Please contact our team to confirm compatibility or technical details before purchasing.
